Getrag 262 gear wheel set,single parts for BMW 2500-3.3Li 3.0L (1977)

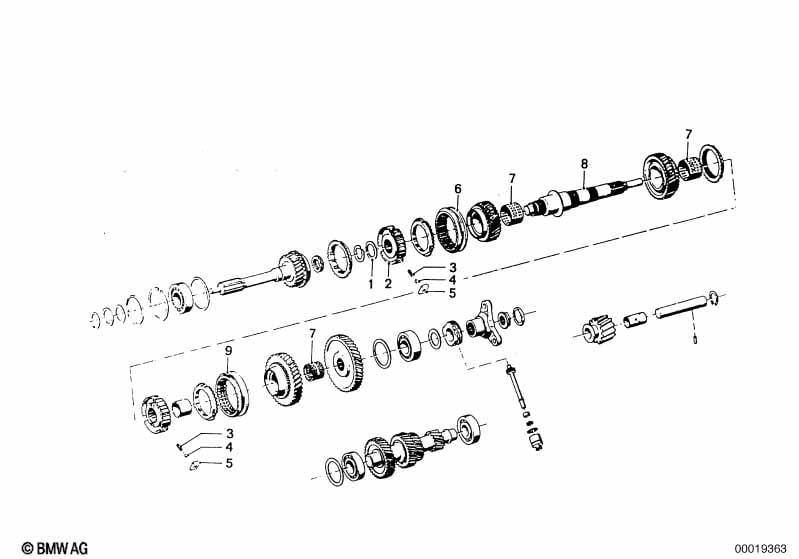

This Getrag 262 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 28X37X4,0 | X | 23221202740 | $7.53 | Shop at ECS Tuning | ||||
| 01 | Support | 28X37X3,9 | X | 23221202741 | $8.77 | Shop at ECS Tuning | ||||
| 01 | Support | 28X37X3,8 | X | 23221202742 | $6.25 | Shop at ECS Tuning | ||||
| 01 | Support | 28X37X3,7 | X | 23221203690 | $6.25 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide sleeve 3rd and 4th gear | 1 | 23231228479 | $416.27 | ENDED | Shop at ECS Tuning | ||||
| 03 | Compression spring | 6 | 23231202738 | $1.63 | ENDED | Shop at ECS Tuning | ||||
| 04 | Ball | 6,5MM III | 6 | 07119986272 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 05 | Insert | 6 | 23231202736 | $6.05 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shift sleeve | 1 | 23231204524 | ENDED | Shop at ECS Tuning | |||||
| 07 | Needle cage | 3 | 23221228279 | $43.20 | Shop at ECS Tuning | |||||
| 08 | Output shaft | 1 | 23211202543 | ENDED | Shop at ECS Tuning | |||||
| 09 | Shift sleeve | 1 | 23231204523 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
