Getrag 262 gear wheel set,single parts for BMW 2.5CS-3.0CSL 3.0CSL (1973)

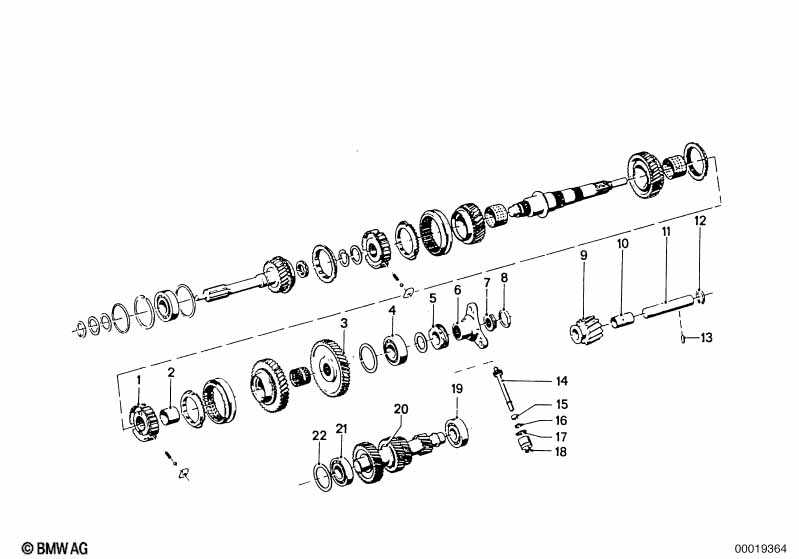

This Getrag 262 gear wheel set,single parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide sleeve 1st and 2nd gear | 1 | 23231228478 | $338.15 | ENDED | Shop at ECS Tuning | ||||
| 03 | Reverse gear wheel | Z=39 | 1 | 23221202744 | $182.77 | Shop at ECS Tuning | ||||
| 04 | Ball bearing | 72X30X19 | 1 | 23129981441 | Shop at ECS Tuning | |||||
| 05 | Speedometer drive | 1 | 23221490119 | $135.09 | Shop at ECS Tuning | |||||
| 06 | Output flange | D=12MM | 1 | 23211203061 | $116.85 | Shop at ECS Tuning | ||||
| 07 | Collar nut | M20X1,5 | 1 | 33121200258 | $8.56 | Shop at ECS Tuning | ||||
| 08 | Securing plate | 1 | 23211490120 | $1.43 | Shop at ECS Tuning | |||||
| 09 | Reverse gear with bush | 1 | 23221202733 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bush | 1 | 23221202731 | $13.50 | ENDED | Shop at ECS Tuning | ||||
| 11 | Shaft | 1 | 23211202745 | $16.41 | ENDED | Shop at ECS Tuning | ||||
| 12 | Lock Ring | 23X1,2 | 1 | 07119934156 | ENDED | Shop at ECS Tuning | ||||
| 13 | Roll pin | 6X12 | 1 | 07119941123 | ENDED | Shop at ECS Tuning | ||||
| 14 | Speedometer drive | 1 | 23221200416 | $105.44 | Shop at ECS Tuning | |||||
| 15 | Bush | 1 | 23121630176 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 16 | Shaft seal | 8X14X6 | 1 | 23121490192 | $14.05 | Shop at ECS Tuning | ||||
| 17 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 18 | Adaptor | 1 | 23211202751 | $88.92 | ENDED | Shop at ECS Tuning | ||||
| 19 | Grooved ball bearing | 66X28X18 | 1 | 23121202732 | $24.37 | Shop at ECS Tuning | ||||
| 20 | Lock Ring | 42X1,75 | 1 | 07119934230 | ENDED | Shop at ECS Tuning | ||||
| 21 | Grooved ball bearing | 25X62X17 | 1 | 07119981432 | $26.75 | Shop at ECS Tuning | ||||
| 22 | Shim | 50X62X0,3 | X | 23121200409 | $1.82 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
