ZF s5-16 housing+attaching parts for BMW 2500-3.3Li 2500 (1971)

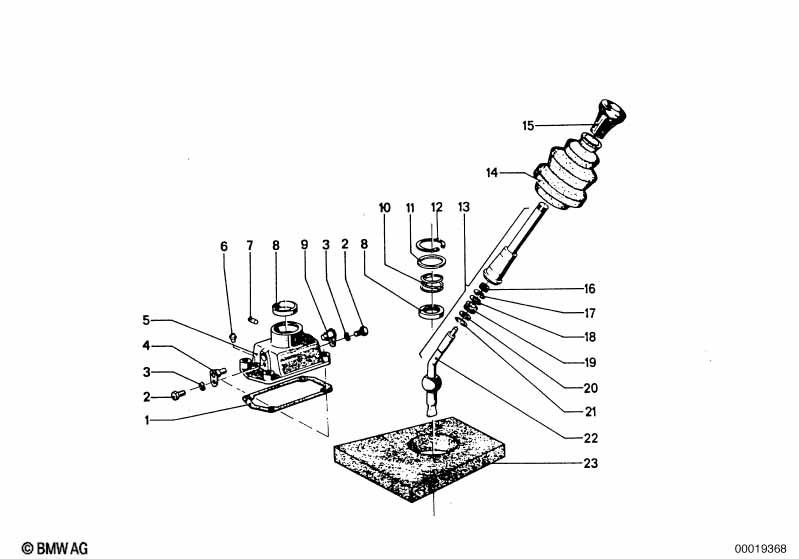

This ZF s5-16 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 23111222330 | $14.08 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Pin | 1 | 23311201385 | ENDED | Shop at ECS Tuning | |||||
| 05 | Rubber Mounting | 1 | 23111201373 | ENDED | Shop at ECS Tuning | |||||
| 06 | Breather | 1 | 23111201379 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 23311201376 | ENDED | Shop at ECS Tuning | |||||
| 08 | Ball Cup upper | 2 | 23411200846 | $2.78 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bearing, shift lever | 2 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 09 | Pin | 1 | 23311201387 | ENDED | Shop at ECS Tuning | |||||
| 10 | Compression spring | 1 | 23411200845 | $1.33 | Shop at ECS Tuning | |||||
| 11 | Spacer sleeve | 1 | 23411200844 | $2.27 | Shop at ECS Tuning | |||||
| 12 | Lock Ring | 1 | 23411466112 | $0.68 | Shop at ECS Tuning | |||||
| 13 | Shift lever | 1 | 08/1968 | 02/1977 | 23411200392 | $43.80 | ENDED | Shop at ECS Tuning | ||
| 14 | Imitation leather boot | 1 | 08/1968 | 02/1977 | 25111208773 | $20.80 | ENDED | Shop at ECS Tuning | ||
| 15 | Gear shift knob, wood | 1 | 25119056584 | ENDED | Shop at ECS Tuning | |||||
| 16 | O-ring | 1 | 23411666132 | $0.68 | Shop at ECS Tuning | |||||
| 18 | Washer | 1 | 23411666166 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 19 | Rubber Ring | 1 | 23411666133 | $1.77 | Shop at ECS Tuning | |||||
| 20 | Washer | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 21 | Spring washer | 1 | 23411666122 | $1.75 | Shop at ECS Tuning | |||||
| 22 | Shift lever-lower part | 1 | 08/1968 | 02/1977 | 23411200842 | ENDED | Shop at ECS Tuning | |||
| 23 | Sound absorber | 1 | 23411200936 | $5.83 | Shop at ECS Tuning |
