Getrag 262 inner gear shifting parts for BMW 2500-3.3Li 3.0S (1973)

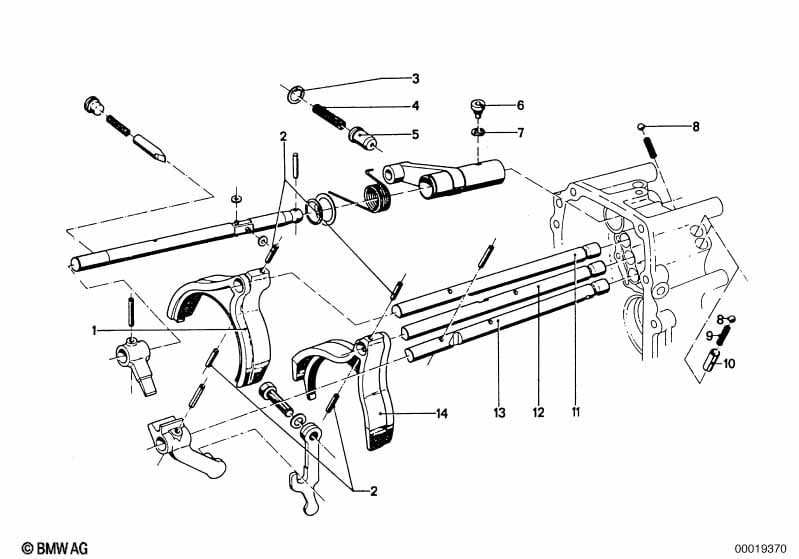

This Getrag 262 inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shifting fork | 1 | 23311202674 | $79.48 | Shop at ECS Tuning | |||||
| 01 | Shifting fork | 1 | 23311205076 | $101.28 | ENDED | Shop at ECS Tuning | ||||
| 02 | Roll pin | 6X14 | 4 | 07119941130 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Compression spring | D=1,7MM | 1 | 23311204513 | $2.51 | Shop at ECS Tuning | ||||
| 05 | Locking pin | 1 | 23311202764 | $26.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M8X12 | 1 | 23311224039 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 09 | Compression spring | 0,9MM | 2 | 23311205046 | $1.95 | Shop at ECS Tuning | ||||
| 10 | Bush | 2 | 23311207056 | $1.11 | Shop at ECS Tuning | |||||
| 11 | Shifting rod 3.and 4.gear | 1 | 23311202756 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| 12 | Shifting rod 1.and 2.gear | 1 | 23311202757 | $360.47 | Shop at ECS Tuning | |||||
| 13 | Shifting rod reverse gear | 1 | 23311202758 | $51.34 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shifting fork | 1 | 23311202672 | $91.89 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Getrag 262 inner gear shifting parts?
- This technical diagram illustrates the Getrag 262 inner gear shifting parts within the Manual Transmission group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Shifting fork (Part #23311202674).
- Which models use the hardware listed in this Getrag 262 inner gear shifting parts?
- The hardware and components featured in the Getrag 262 inner gear shifting parts are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Shifting fork (23311202674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 262 inner gear shifting parts assembly?
- Each item in the Getrag 262 inner gear shifting parts corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Shifting fork by locating its position on the schematic, which then links to the official BMW part number 23311202674 for the Manual Transmission section.
