External gearshift parts/Shift lever for BMW 2500-3.3Li 2500 (1971)

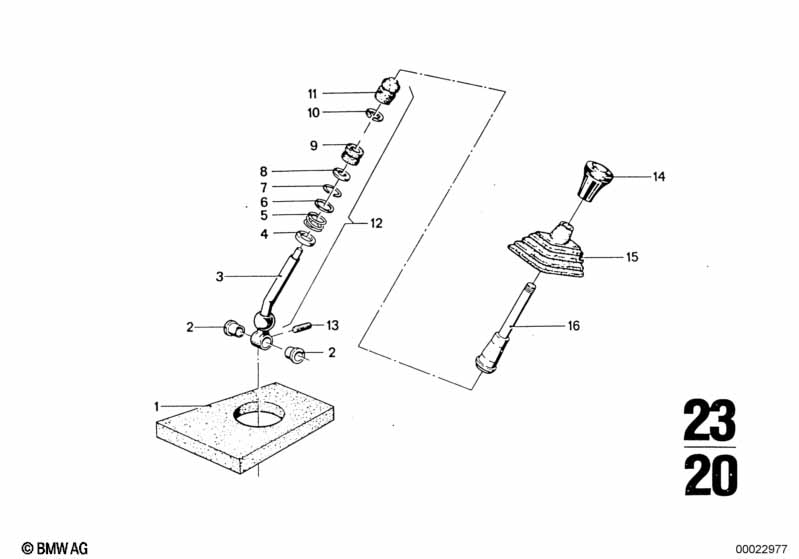

This External gearshift parts/Shift lever technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound absorber | 1 | 23411200936 | $5.83 | Shop at ECS Tuning | |||||
| 02 | Bush | 2 | 08/1968 | 02/1977 | 23411466120 | $0.84 | Shop at ECS Tuning | |||
| 03 | Shift lever-lower part | M.GEWINDE | 1 | 08/1968 | 02/1977 | 25111202283 | ENDED | Shop at ECS Tuning | ||
| 04 | Ball Cup upper | 1 | 23411466110 | $8.01 | Shop at ECS Tuning | |||||
| 05 | Compression spring | 1 | 23411200845 | $1.33 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 1 | 23411200844 | $2.27 | Shop at ECS Tuning | |||||
| 07 | Spring washer | 1 | 23411666122 | $1.75 | Shop at ECS Tuning | |||||
| 08 | Washer | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 09 | Rubber Ring | 1 | 23411666133 | $1.77 | Shop at ECS Tuning | |||||
| 10 | Circlip | 10-ZNS3 | 1 | 08/1968 | 02/1977 | 07119904911 | $0.27 | Shop at ECS Tuning | ||
| 10 | Circlip | 12,0 | 1 | 08/1968 | 02/1977 | 07119932892 | ENDED | Shop at ECS Tuning | ||
| 11 | O-ring | 1 | 08/1968 | 02/1977 | 23411666132 | $0.68 | Shop at ECS Tuning | |||
| 11 | Cap | 1 | 08/1968 | 02/1977 | 25111205441 | $1.52 | Shop at ECS Tuning | |||
| 12 | Shift lever | 1 | 08/1968 | 02/1977 | 25111202285 | Shop at ECS Tuning | ||||
| 12 | Shift lever | 1 | 08/1968 | 02/1977 | 25111220218 | ENDED | Shop at ECS Tuning | |||
| 13 | Grub screw | 1 | 23411201536 | $2.32 | ENDED | Shop at ECS Tuning | ||||
| 13 | Grub screw | 1 | 25111203551 | Shop at ECS Tuning | ||||||
| 14 | Gear shift knob, wood | 1 | 25119056584 | ENDED | Shop at ECS Tuning | |||||
| 14 | Gear shift knob, Palisander wood | ALPINA | 1 | 82110303062 | $106.14 | ENDED | Shop at ECS Tuning | |||
| 15 | Rubber boot | 1 | 25111206289 | Shop at ECS Tuning | ||||||
| 16 | Shift lever-upper part | 1 | 25111220778 | $91.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
