GS5S31BZ(SMG) Press.accumulator/Valves for BMW 3 Series E46 330Ci

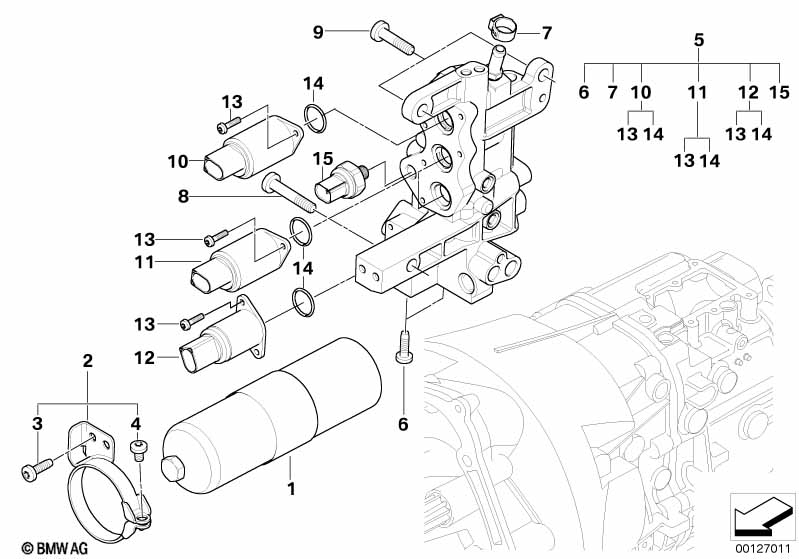

This GS5S31BZ(SMG) Press.accumulator/Valves technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
||||||||
| 01 | Pressure accumulator | 1 | 03/2003 | 23427507004 | Shop at ECS Tuning | |||||
| 02 | Retaining plate kit, pressure tank | 1 | 03/2003 | 23427507069 | Shop at ECS Tuning | |||||
| 03 | Torx bolt, self-threading | M6X20 | 2 | 03/2003 | 23427507050 | Shop at ECS Tuning | ||||
| 04 | Torx screw | M6X20 | 1 | 03/2003 | 23427507068 | ENDED | Shop at ECS Tuning | |||
| 05 | Valve block kit | 1 | 03/2003 | 23427507062 | Shop at ECS Tuning | |||||
| 06 | Torx bolt, self-threading | M6X20 | 2 | 03/2003 | 23427507050 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | 1 | 03/2003 | 23427507061 | Shop at ECS Tuning | |||||
| 08 | Torx screw | M8X35 | 1 | 03/2003 | 23427507057 | ENDED | Shop at ECS Tuning | |||
| 09 | Torx screw | T30 | 2 | 03/2003 | 23427507058 | ENDED | Shop at ECS Tuning | |||
| 10 | Clutch valve kit | 1 | 03/2003 | 23427507025 | Shop at ECS Tuning | |||||
| 11 | Shift valve kit | 2 | 03/2003 | 23427507026 | Shop at ECS Tuning | |||||
| 12 | Solenoid valve kit | 1 | 03/2003 | 23427507027 | Shop at ECS Tuning | |||||
| 13 | Torx bolt, self-threading | M4X15 | 8 | 03/2003 | 23427507066 | Shop at ECS Tuning | ||||
| 14 | O-ring | 18X2 | 4 | 03/2003 | 23427507067 | Shop at ECS Tuning | ||||
| 15 | Pressure sensor | 1 | 03/2003 | 23427507023 | $113.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci GS5S31BZ(SMG) Press.accumulator/Valves?
- This technical diagram illustrates the GS5S31BZ(SMG) Press.accumulator/Valves within the Manual Transmission group for the 3 Series E46 330Ci. It provides a detailed exploded view of the components, identifying key parts such as the Pressure accumulator (Part #23427507004).
- Which models use the hardware listed in this GS5S31BZ(SMG) Press.accumulator/Valves?
- The hardware and components featured in the GS5S31BZ(SMG) Press.accumulator/Valves are specific to the 3 Series E46 330Ci. These technical specifications ensure that parts like the Pressure accumulator (23427507004) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GS5S31BZ(SMG) Press.accumulator/Valves assembly?
- Each item in the GS5S31BZ(SMG) Press.accumulator/Valves corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Pressure accumulator by locating its position on the schematic, which then links to the official BMW part number 23427507004 for the Manual Transmission section.
