GS5S31BZ(SMG) Hydraulic pipes for BMW 3 Series E46 330Ci

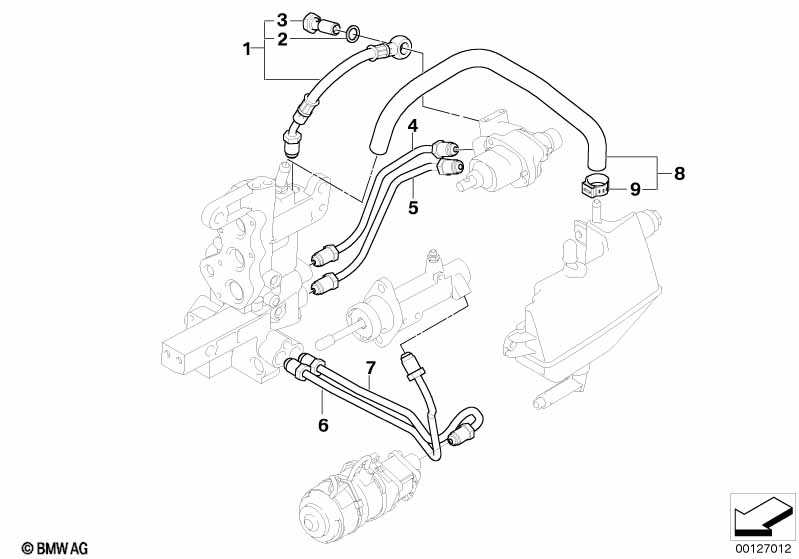

This GS5S31BZ(SMG) Hydraulic pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
||||||||
| 01 | Hydraulic pipe kit | 1 | 03/2003 | 23427507028 | Shop at ECS Tuning | |||||
| 02 | Washer-gasket | 2 | 03/2003 | 23427507010 | Shop at ECS Tuning | |||||
| 03 | Hydraulic screw | 1 | 03/2003 | 23427507076 | Shop at ECS Tuning | |||||
| 04 | Hydraulic pipe | 1 | 03/2003 | 23427507044 | Shop at ECS Tuning | |||||
| 05 | Hydraulic pipe | 1 | 03/2003 | 23427507045 | Shop at ECS Tuning | |||||
| 06 | Hydraulic pipe | 1 | 03/2003 | 23427507046 | Shop at ECS Tuning | |||||
| 07 | Hydraulic pipe | 1 | 03/2003 | 23427507029 | Shop at ECS Tuning | |||||
| 08 | Return pipe set | 1 | 03/2003 | 23427507047 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 2 | 03/2003 | 23427507061 | Shop at ECS Tuning | |||||
