GS5S31BZ(SMG) inner gear shifting parts for BMW 3 Series E46 330Ci

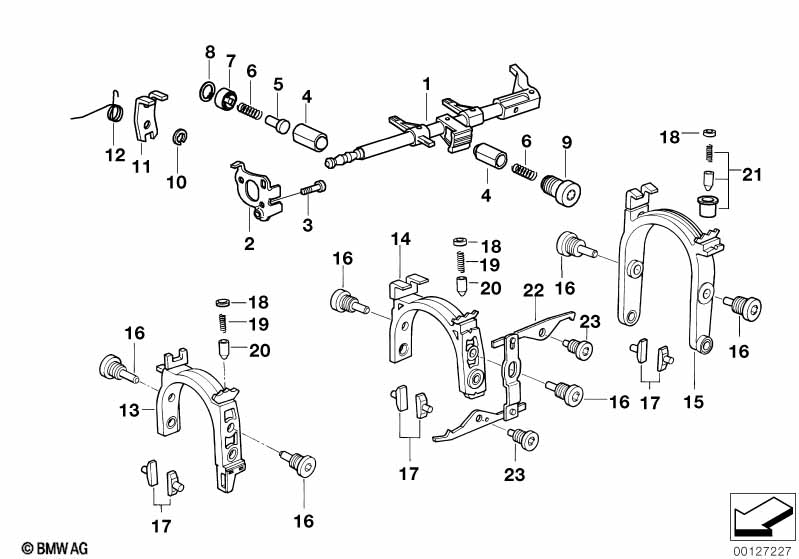

This GS5S31BZ(SMG) inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
||||||||
| 01 | Selector shaft | 1 | 03/2003 | 23017507090 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Stop plate | 1 | 03/2003 | 23017507088 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M6X20 | 2 | 03/2003 | 23311224922 | $1.68 | Shop at ECS Tuning | |||
| 04 | Locking pin | 1 | 03/2003 | 23017507091 | Shop at ECS Tuning | |||||
| 05 | Clamping insert | 1 | 03/2003 | 23017507092 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 03/2003 | 23311224819 | $2.23 | Shop at ECS Tuning | ||||
| 07 | Cover lid | 3 | 03/2003 | 23311224825 | $5.42 | Shop at ECS Tuning | ||||
| 08 | Lock Ring | 20X1 | 3 | 03/2003 | 23317531374 | $1.43 | Shop at ECS Tuning | |||
| 09 | Connector | 1 | 03/2003 | 23017507093 | Shop at ECS Tuning | |||||
| 10 | Lock Ring | 1 | 03/2003 | 23311224923 | $0.57 | Shop at ECS Tuning | ||||
| 11 | Deflection lever | 1 | 03/2003 | 23311224863 | $11.46 | Shop at ECS Tuning | ||||
| 12 | Return spring | 1 | 03/2003 | 23311224833 | $2.70 | ENDED | Shop at ECS Tuning | |||
| 13 | Shifting fork 5st and reverse gear | 1 | 03/2003 | 23311282585 | $72.70 | +core | Shop at ECS Tuning | |||
| 14 | Shifting fork 1st and 2nd gear | 1 | 03/2003 | 23311282582 | $99.99 | +core | Shop at ECS Tuning | |||
| 15 | Shifting fork 3rd and 4th gear | 1 | 03/2003 | 23311282584 | $106.86 | Shop at ECS Tuning | ||||
| 16 | Bolt | 6 | 03/2003 | 23317543214 | $6.88 | Shop at ECS Tuning | ||||
| 17 | Sliding piece | 6 | 03/2003 | 23311224848 | $13.99 | ENDED | Shop at ECS Tuning | |||
| 18 | Cover lid | 3 | 03/2003 | 23317637524 | Shop at ECS Tuning | |||||
| 19 | Compression spring | 2 | 03/2003 | 23311224959 | $1.65 | Shop at ECS Tuning | ||||
| 20 | Locking pin | 2 | 03/2003 | 23311224791 | $5.48 | Shop at ECS Tuning | ||||
| 21 | Set of detent pins | 1 | 03/2003 | 23117525048 | $11.79 | SI 230102(881) | Shop at ECS Tuning | |||
| 22 | Locking lever | 1 | 03/2003 | 23211224843 | $13.01 | Shop at ECS Tuning | ||||
| 23 | Collar bolt | 2 | 03/2003 | 23317543225 | $7.61 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
