GS6X37BZ grbx housing and mount. parts for BMW 3 Series E90 330xi (2006)
This GS6X37BZ grbx housing and mount. parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide tube | 1 | 23117531354 | $27.11 | Shop at ECS Tuning | |||||
| 02 | Torx screw | M6X12 | 4 | 23117531355 | $1.80 | Shop at ECS Tuning | ||||
| 03 | Shaft seal | 35X64X9 | 1 | 23117531353 | $20.09 | Shop at ECS Tuning | ||||
| 04 | Cover lid | 1 | 23117531357 | $8.82 | Shop at ECS Tuning | |||||
| 05 | Dowel pin | 8M6X24 | 1 | 24411218031 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Screw Plug With Gasket Ring | M18X1,5 | 2 | 23117531356 | $7.44 | Shop at ECS Tuning | ||||
| 07 | Shaft seal | 45X57X9 | 1 | 23117531365 | $20.09 | Shop at ECS Tuning | ||||
| 08 | Breather tube | 1 | 23117531358 | $6.48 | Shop at ECS Tuning | |||||
| 09 | Shaft seal | 15X21X5 | 1 | 23117531360 | $10.02 | Shop at ECS Tuning | ||||
| 10 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 11 | Adapter shaft | 1 | 23117557292 | $307.25 | +core | Shop at ECS Tuning | ||||
| 12 | Protection cap | 1 | 23117551425 | $6.57 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M10X95 | 1 | 23117551426 | $4.27 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 330xi GS6X37BZ grbx housing and mount. parts?

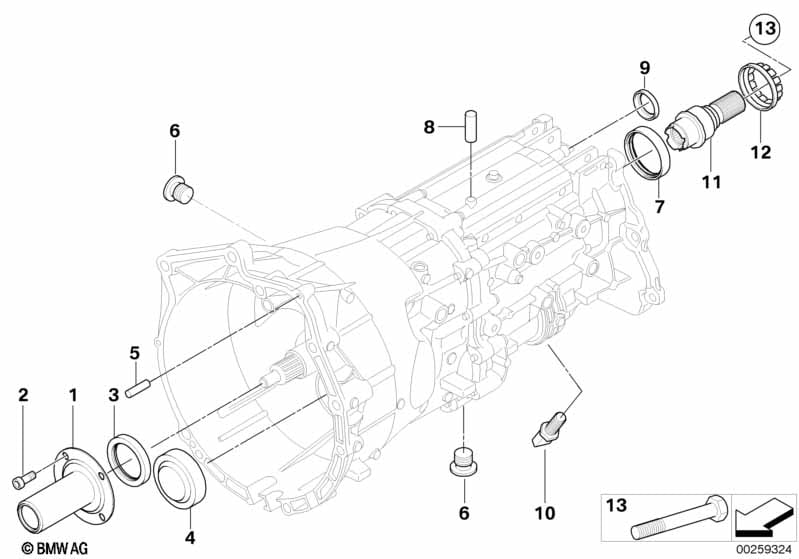

- This technical diagram illustrates the GS6X37BZ grbx housing and mount. parts within the Manual Transmission group for the 3 Series E90 330xi produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Guide tube (Part #23117531354).
- Which models use the hardware listed in this GS6X37BZ grbx housing and mount. parts?
- The hardware and components featured in the GS6X37BZ grbx housing and mount. parts are specific to the 3 Series E90 330xi produced during 2006. These technical specifications ensure that parts like the Guide tube (23117531354) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GS6X37BZ grbx housing and mount. parts assembly?
- Each item in the GS6X37BZ grbx housing and mount. parts corresponds to the numbered list below the illustration. For the 3 Series E90 330xi, you can identify the Guide tube by locating its position on the schematic, which then links to the official BMW part number 23117531354 for the Manual Transmission section.
