GS6X37BZ inner gear shifting parts for BMW 3 Series E90 325xi (2007)

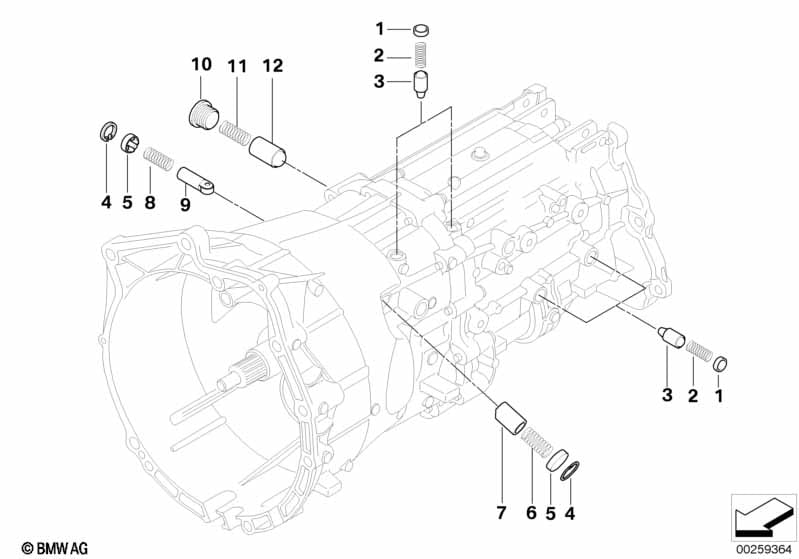

This GS6X37BZ inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover lid | 4 | 23317637524 | Shop at ECS Tuning | ||||||
| 02 | Compression spring | 4 | 23311222989 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Locking pin | 4 | 23317543221 | $5.69 | Shop at ECS Tuning | |||||
| 04 | Lock Ring | 20X1 | 2 | 23317531374 | $1.43 | Shop at ECS Tuning | ||||
| 05 | Cover lid | 2 | 23311224825 | $5.42 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 25117550445 | $1.43 | Shop at ECS Tuning | |||||
| 07 | Locking pin | 1 | 25117539764 | $8.14 | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 23317550446 | $2.40 | Shop at ECS Tuning | |||||
| 09 | Locking pin | 1 | 23311224823 | $27.61 | Shop at ECS Tuning | |||||
| 10 | Screw plug, inner hexagon | M30X1,5 / SW14 | 1 | 23317531372 | $22.36 | Shop at ECS Tuning | ||||
| 11 | Compression spring | 1 | 23117550453 | $3.62 | Shop at ECS Tuning | |||||
| 12 | Locking pin | 1 | 23317600618 | Shop at ECS Tuning |
