Gearbox mounting parts for BMW 3 Series E90 318d (2007)

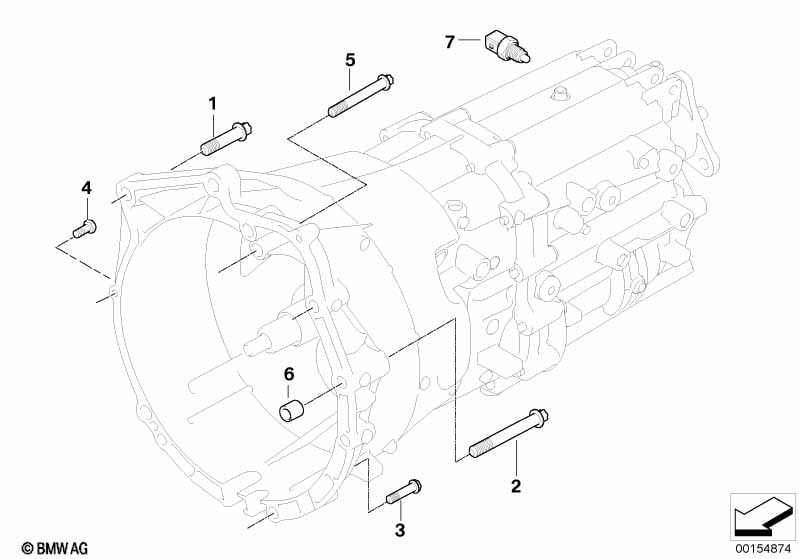

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Transmission cover panel in MG11/FG10 | |||||||||
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X90 | 2 | 23001222894 | $1.68 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M8X60 | 1 | 23001434511 | $1.68 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
