GS6S53BZ(SMG) Hydraulic unit for BMW 5 Series E61 545i (2005)

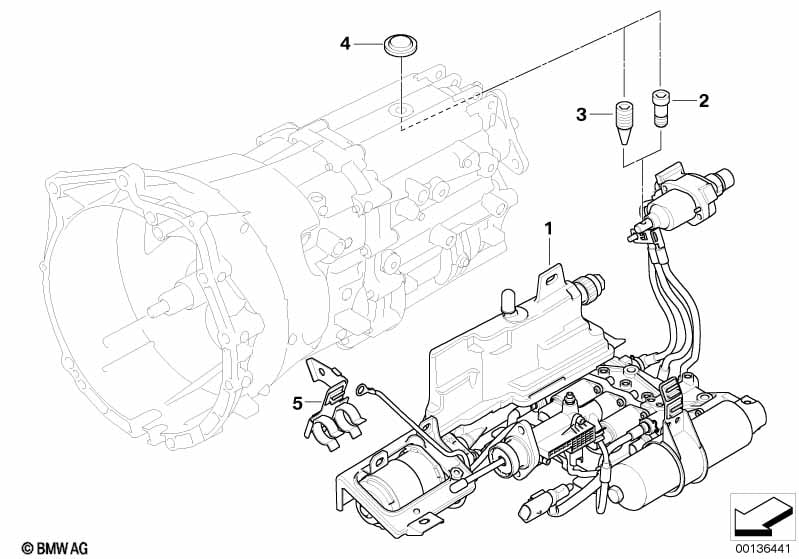

This GS6S53BZ(SMG) Hydraulic unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 545i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Important! Always determine the transmission code prior to ordering. The transmission code is stamped on the botton of the bellhousing. Only for transmission code HPA / THPA |
||||||||||
| 01 | Hydraulic unit | 1 | 23427507164 | $4366.93 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover lid | 1 | 23111224824 | $7.88 | Shop at ECS Tuning | |||||
| -- | Torx bolt | M6X20-8.8-ZNNIV | 2 | 23017507117 | $8.75 | Shop at ECS Tuning | ||||
| -- | Fit bolt | M6X16 | 1 | 23017507118 | $4.20 | Shop at ECS Tuning | ||||
| -- | Torx bolt | M8X45 | 2 | 23017507120 | $2.77 | Shop at ECS Tuning | ||||
| -- | Torx bolt | M6X40 | 1 | 23017507121 | $2.62 | Shop at ECS Tuning | ||||
| -- | Torx bolt | M6X16 | 9 | 23017507124 | $1.75 | Shop at ECS Tuning | ||||
| -- | Plug-in connection bracket | 1 | 12527522653 | $38.50 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| Important! Always determine the transmission code prior to ordering. The transmission code is stamped on the botton of the bellhousing. Only for transmission code HPC / THPC / THPE |
||||||||||
| 01 | Hydraulic unit | 1 | 23427567720 | $4366.93 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cover lid | 1 | 23111224824 | $7.88 | Shop at ECS Tuning | |||||
| -- | Torx bolt | M6X20-8.8-ZNNIV | 1 | 23017507117 | $8.75 | Shop at ECS Tuning | ||||
| -- | Torx bolt | M8X45 | 1 | 23017507120 | $2.77 | Shop at ECS Tuning | ||||
| -- | Torx bolt | M6X40 | 1 | 23017507121 | $2.62 | Shop at ECS Tuning | ||||
| -- | Torx bolt | M6X16 | 1 | 23017507124 | $1.75 | Shop at ECS Tuning | ||||
| -- | Tapered screw | M8X1 | 1 | 23017568213 | $7.17 | Shop at ECS Tuning | ||||
| -- | Plug-in connection bracket | 1 | 12527522653 | $38.50 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| Important! Always determine the transmission code prior to ordering. The transmission code is stamped on the botton of the bellhousing. Only for transmission code HPA / THPA |
||||||||||
| 02 | Fit bolt | M6X16 | 1 | 23017507118 | $4.20 | Shop at ECS Tuning | ||||
| Important! Always determine the transmission code prior to ordering. The transmission code is stamped on the botton of the bellhousing. Only for transmission code HPC / THPC / THPE |
||||||||||
| 03 | Tapered screw | M8X1 | 1 | 23017568213 | $7.17 | Shop at ECS Tuning | ||||
| 04 | Cover lid | 1 | 23111224824 | $7.88 | Shop at ECS Tuning | |||||
| 05 | Plug-in connection bracket | 1 | 12527522653 | $38.50 | Shop at ECS Tuning | |||||
