Individual transmission parts for BMW 1502-2002tii 2002 (1971)

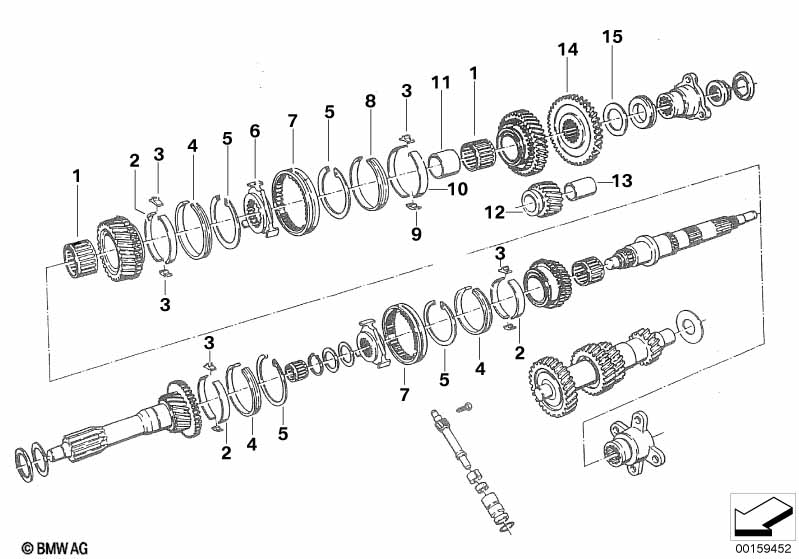

This Individual transmission parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Needle cage | 42X37X27,5 | 2 | 23221204605 | Shop at ECS Tuning | |||||
| 02 | Ratched | 6 | 23231630129 | $1.29 | Shop at ECS Tuning | |||||
| 03 | Insert | 4 | 23231630126 | ENDED | Shop at ECS Tuning | |||||
| 04 | Synchronizer ring | 3 | 23231630122 | $280.12 | Shop at ECS Tuning | |||||
| 04 | Synchronizer ring | 3 | 23231200958 | $280.12 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lock Ring | 4 | 23231630132 | ENDED | Shop at ECS Tuning | |||||
| 06 | Guide sleeve | 1 | 23311490104 | $116.06 | ENDED | Shop at ECS Tuning | ||||
| 07 | Shift sleeve | 2 | 23311490107 | ENDED | Shop at ECS Tuning | |||||
| 08 | Synchronizer ring | 1 | 23231200958 | $280.12 | ENDED | Shop at ECS Tuning | ||||
| 09 | Stopper | 4 | 23231630123 | $5.38 | ENDED | Shop at ECS Tuning | ||||
| 10 | Ratched | 2 | 23231200959 | $1.29 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bush | 2 | 23211490109 | ENDED | Shop at ECS Tuning | |||||
| 12 | Reverse gear with bush | 1 | 23221205213 | $256.68 | Shop at ECS Tuning | |||||
| 13 | Bush | 1 | 23221205216 | $8.59 | Shop at ECS Tuning | |||||
| 14 | Reverse gear wheel | 1 | 23221490124 | $141.73 | ENDED | Shop at ECS Tuning | ||||
| 15 | Shim | 33,1X42X2,10 | 1 | 23221630215 | $4.83 | Shop at ECS Tuning | ||||
| 15 | Shim | 33,1X42X2,15 | 1 | 23221630216 | $5.17 | Shop at ECS Tuning | ||||
| 15 | Shim | 33,1X42X2,20 | 1 | 23221630217 | $5.17 | ENDED | Shop at ECS Tuning | |||
| 15 | Shim | 33,1X42X2,25 | 1 | 23221630218 | $4.97 | Shop at ECS Tuning | ||||
| 15 | Shim | 33,1X42X2,30 | 1 | 23221630219 | $5.17 | Shop at ECS Tuning | ||||
| 15 | Shim | 33,1X42X2,35 | 1 | 23221630220 | $5.17 | ENDED | Shop at ECS Tuning | |||
| 15 | Shim | 33,1X42X2,40 | 1 | 23221630221 | $5.17 | Shop at ECS Tuning |
