Gearbox mounting parts for BMW 1 Series E82 120d (2013)

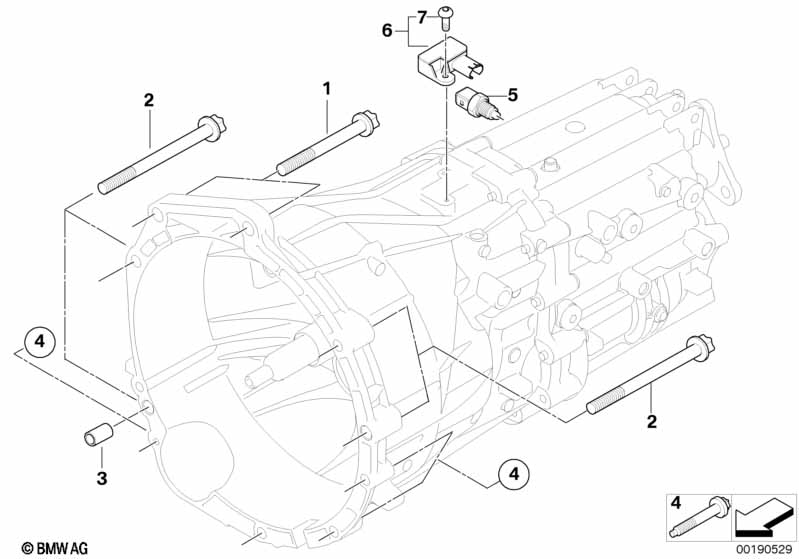

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M8X50-8.8-ZNS3 | 4 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 05 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package or Auto start/stop function |
S1CBA=Yes S1CCA=Yes |
|||||||||
| 06 | Neutral sensor | 1 | 23147606188 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 23147576178 | Shop at ECS Tuning | |||||
| 07 | ISA screw | M5X12-8.8-MK | 2 | 23149908749 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package or Auto start/stop function |
S1CBA=Yes S1CCA=Yes |
|||||||||
| 07 | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 06/2015 | 23147576178 | Shop at ECS Tuning | ||||
