Gearbox mounting parts for BMW 3 Series E90 M3

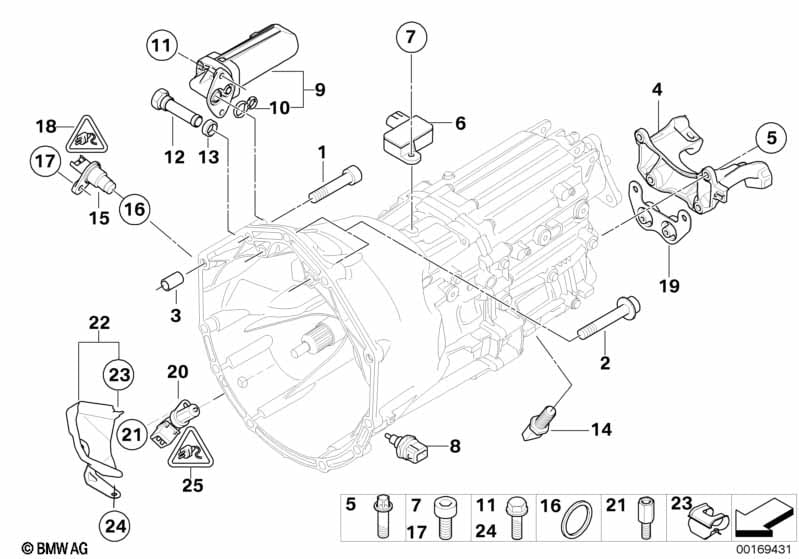

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and M double-clutch transmiss. w/Drivelogic and Sport automatic transmission and Automatic transmission w/ shift paddles |
S205A=No S2MKA=No S2TBA=No S2TEA=No |
||||||||
| 01 | Torx bolt | M10X55-8.8 ZNS3 | 10 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Transmission supporting bracket | 1 | 22316776524 | $44.31 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M10X32.5 | 4 | 22316774293 | $1.02 | Shop at ECS Tuning | ||||
| 06 | Neutral sensor | 1 | 23147838386 | $255.47 | +core | Shop at ECS Tuning | ||||
| 07 | Screw | M4X12 | 2 | 63127682829 | $1.54 | Shop at ECS Tuning | ||||
| 08 | Oil temperature sensor | 1 | 23147838387 | $14.52 | Shop at ECS Tuning | |||||
| 09 | Oil pump | 1 | 11417834496 | $320.33 | Shop at ECS Tuning | |||||
| 10 | Gasket | 1 | 11417836233 | $8.54 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Oil strainer | 1 | 17212283111 | $47.57 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A18X22-AL | 1 | 07119963300 | $0.57 | Shop at ECS Tuning | ||||
| 14 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 15 | Pulse sensor crankshaft/transmission | 1 | 13627525015 | $116.05 | Shop at ECS Tuning | |||||
| 16 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 17 | Fillister-head screw | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 18 | Socket housing, blue | 1 | 12527507526 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Terminal socket MCON 1.2 | 0,5-0,75 MM²/AG | 1 | 12527545852 | $0.50 | Shop at ECS Tuning | ||||
| 19 | Bracket | 1 | 18207841051 | $50.61 | Shop at ECS Tuning | |||||
| 20 | Pulse generator, crankshaft | 1 | 13627839138 | $116.05 | Shop at ECS Tuning | |||||
| 21 | Spacer | 1 | 13627840626 | $7.50 | Shop at ECS Tuning | |||||
| 22 | Heat resistant plate | 1 | 13627840624 | $21.40 | Shop at ECS Tuning | |||||
| 23 | Cable holder | 1 | 07146976165 | $0.66 | Shop at ECS Tuning | |||||
| 24 | Hex bolt with washer | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 25 | Socket housing | 2 POL. | 1 | 12521427221 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
