Gearbox mounting parts for BMW 3 Series E90 LCI 320i (2011)

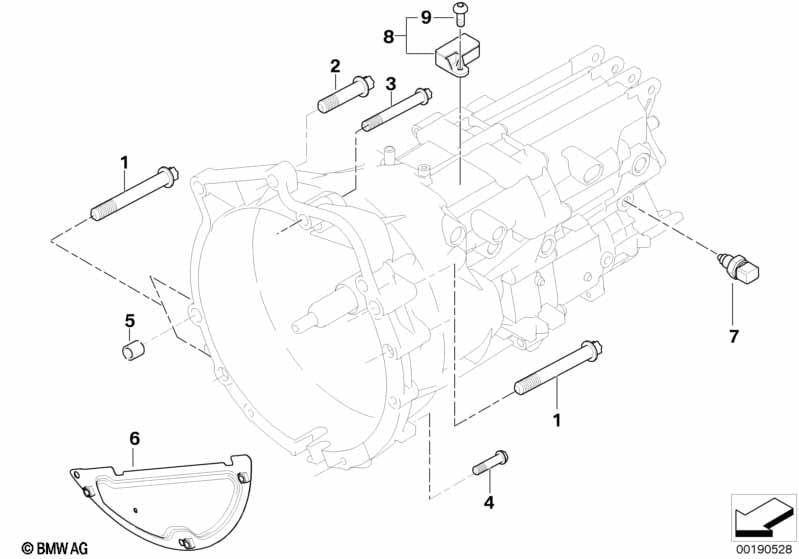

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X90 | 4 | 23001222894 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X40 | 3 | 23007519717 | Shop at ECS Tuning | |||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Covering plate | 1 | 24007527724 | Shop at ECS Tuning | ||||||
| 07 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package or Auto start/stop function |
S1CBA=Yes S1CCA=Yes |
|||||||||
| 08 | Neutral sensor | 1 | 23147606188 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 23147576178 | Shop at ECS Tuning | |||||
| 09 | ISA screw | M5X12-8.8-MK | 2 | 23149908749 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package or Auto start/stop function |
S1CBA=Yes S1CCA=Yes |
|||||||||
| 09 | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 06/2015 | 23147576178 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i Gearbox mounting parts?
- This technical diagram illustrates the Gearbox mounting parts within the Manual Transmission group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222894).
- Which models use the hardware listed in this Gearbox mounting parts?
- The hardware and components featured in the Gearbox mounting parts are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Torx bolt (23001222894) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting parts assembly?
- Each item in the Gearbox mounting parts corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222894 for the Manual Transmission section.
