Getrag 265/5 synchron.reverse gear for BMW 3 Series E30 M3 (1990)

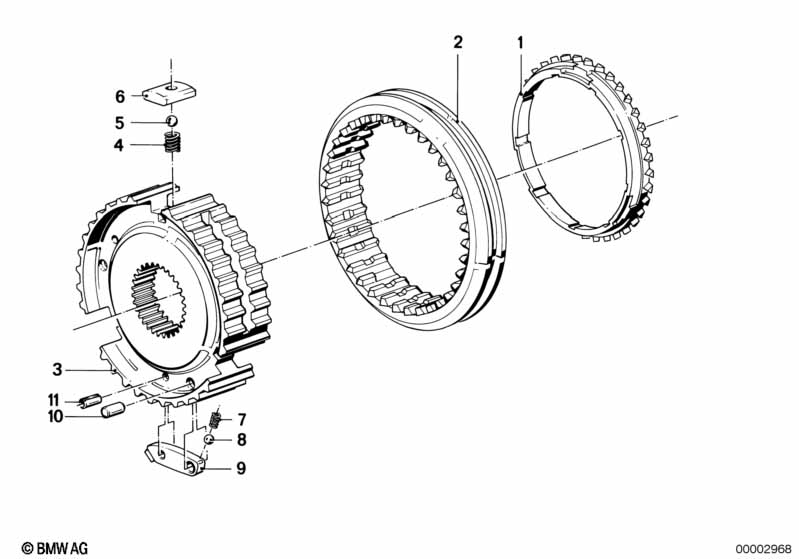

This Getrag 265/5 synchron.reverse gear technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO SYNCHRON.REVERSE GEAR | ||||||||||
| 01 | Synchronizer ring | 1 | 23231209332 | $108.94 | Shop at ECS Tuning | |||||
| 02 | Guide sleeve 1st and reverse gear | 1 | 23231224044 | ENDED | Shop at ECS Tuning | |||||
| 02 | Guide sleeve 1st and reverse gear | 1 | 23231224749 | $284.58 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Reverse shift gear with synchroniz.ring | 1 | 23221228570 | Shop at ECS Tuning | ||||||
| 03 | Guide sleeve 1st and reverse gear | 1 | 23231224044 | ENDED | Shop at ECS Tuning | |||||
| 03 | Guide sleeve 1st and reverse gear | 1 | 23231224749 | $284.58 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Reverse shift gear with synchroniz.ring | 1 | 23221228570 | Shop at ECS Tuning | ||||||
| 04 | Compression spring | 3 | 23231205228 | $1.07 | Shop at ECS Tuning | |||||
| 05 | Ball | 6,5MM III | 3 | 07119986272 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 06 | Insert | 3 | 23231202736 | $6.05 | ENDED | Shop at ECS Tuning | ||||
| 07 | Compression spring | D=0,4MM | 3 | 23231224047 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 08 | Ball | 4,5MM III | 3 | 07119986245 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lever | 3 | 23231224025 | $12.16 | Shop at ECS Tuning | |||||
| 10 | Dowel pin | 3 | 23311205044 | $1.95 | ENDED | Shop at ECS Tuning | ||||
