Getrag 260/5/50 housing+attaching parts for BMW 3 Series E30 325e (1987)

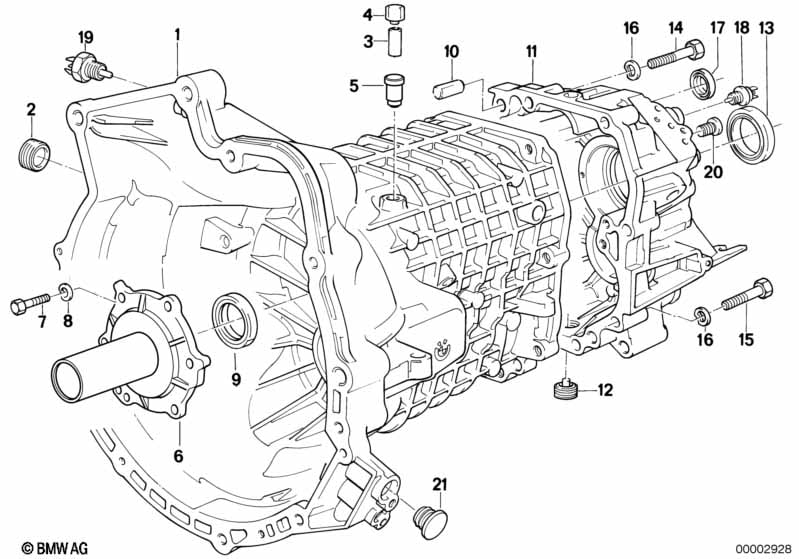

This Getrag 260/5/50 housing+attaching parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission housing | 1 | 23111222657 | $553.54 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw plug | M24X1,5 | 1 | 23117527440 | $5.48 | Shop at ECS Tuning | ||||
| 03 | Sleeve | 1 | 23137545703 | $2.58 | Shop at ECS Tuning | |||||
| 04 | Ventilation valve | 1 | 23131224084 | $1.93 | Shop at ECS Tuning | |||||
| 05 | Steel breather | 1 | 23131204841 | $11.84 | Shop at ECS Tuning | |||||
| 06 | Housing cover | 1 | 23111228228 | $235.23 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X22-8.8-ZNS3 | 6 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Shaft seal | 35X52X7 | 1 | 23121209311 | Shop at ECS Tuning | |||||
| 10 | Dowel pin | 10X32 | 2 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 11 | Transmission cover | 1 | 23111228020 | $391.40 | ENDED | Shop at ECS Tuning | ||||
| 12 | Screw plug | M24X1,5 | 1 | 23117546876 | $12.63 | Shop at ECS Tuning | ||||
| 13 | Shaft seal | 40X55X8 | 1 | 23121205342 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M8X35 | 9 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 18 | Backup light switch | M12X1,5 | 1 | 23141354071 | $16.78 | Shop at ECS Tuning | ||||
| 20 | Screw | M10X1,5 | 1 | 23111224482 | $5.63 | Shop at ECS Tuning | ||||
| 21 | Blind plug | 2 | 21111225047 | $6.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Getrag 260/5/50 housing+attaching parts?
- This technical diagram illustrates the Getrag 260/5/50 housing+attaching parts within the Manual Transmission group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Transmission housing (Part #23111222657).
- Which models use the hardware listed in this Getrag 260/5/50 housing+attaching parts?
- The hardware and components featured in the Getrag 260/5/50 housing+attaching parts are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Transmission housing (23111222657) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Getrag 260/5/50 housing+attaching parts assembly?
- Each item in the Getrag 260/5/50 housing+attaching parts corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Transmission housing by locating its position on the schematic, which then links to the official BMW part number 23111222657 for the Manual Transmission section.
