Gearbox mounting parts for BMW 5 Series F10 LCI 535i (2016)

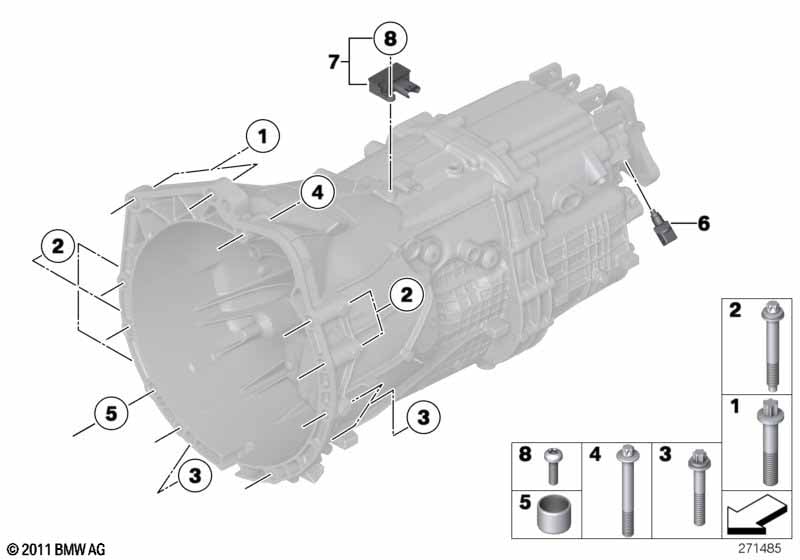

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S205A=No S2TBA=No S2TCA=No |
||||||||
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X90 | 5 | 23001222894 | $1.68 | Shop at ECS Tuning | ||||
| or | ||||||||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 07 | Neutral sensor | 1 | 23147606188 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 23147576178 | Shop at ECS Tuning | |||||
| 08 | ISA screw | M5X12-8.8-MK | 2 | 23149908749 | Shop at ECS Tuning | |||||
