Manual transmission GS6X45DZ for BMW 3 Series F31 LCI 320dX (2019)

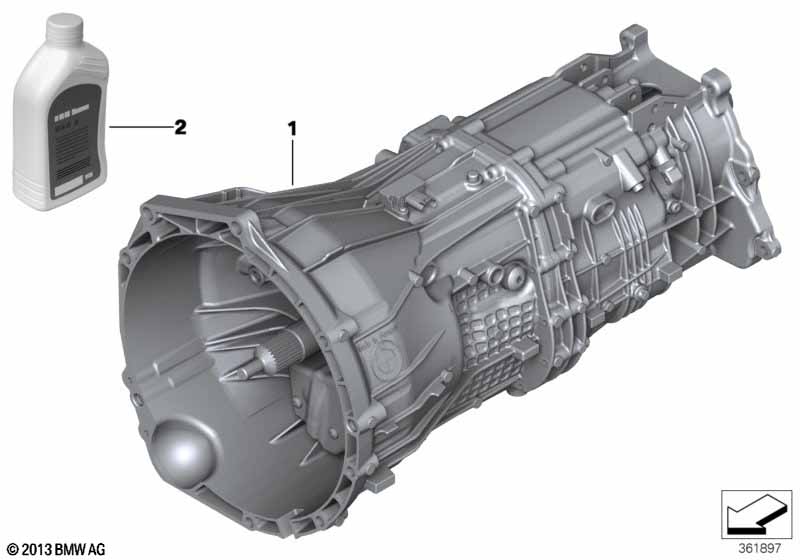

This Manual transmission GS6X45DZ technical drawing provides a detailed breakdown of the assembly for the 3 Series F31 LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP 6-speed transmission | GS6X45DZ - HBF | 1 | 23008609427 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M8X25 8.8 ZNS3 | 1 | 07119907207 | Shop at ECS Tuning | |||||
| 01 | RP REMAN 6-gear transmission | GS6X45DZ - THBF | 1 | 23008609428 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M8X25 8.8 ZNS3 | 1 | 07119907207 | Shop at ECS Tuning | |||||
| 02 | Oil for manual transmission MTF LT-5 | 1000ML | X | 83222156969 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- NoS = No Stock (Part centrally not stocked)
