Gearbox mounting for BMW 7 Series E32 735iL (1992)

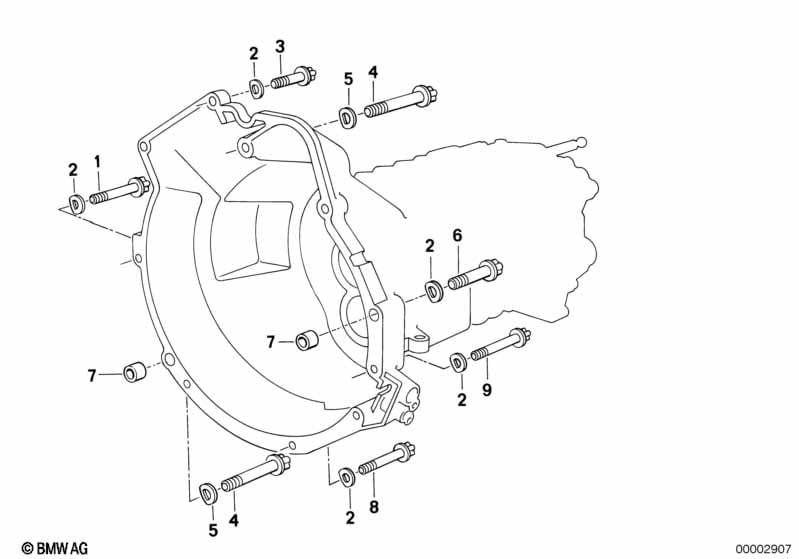

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Getrag 280 | |||||||||
| 01 | Torx bolt | M8X70 | 1 | 23001434510 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M8X35 | 2 | 23001434512 | $1.13 | ENDED | Shop at ECS Tuning | |||
| 04 | ASA-Bolt | M10X75 | 3 | 23001434691 | $2.82 | Shop at ECS Tuning | ||||
| 05 | Washer | 10-200HV-ZNNIV | 4 | 07119907114 | Shop at ECS Tuning | |||||
| 06 | ASA-Bolt | M10X35-8.8-ZNS3 | 1 | 23001434694 | $1.15 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=14,5/12,6MM | 2 | 23111606156 | $2.18 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M8X50-8.8-ZNS3 | 4 | 01/1989 | 23001222887 | $1.13 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735iL Gearbox mounting?
- This technical diagram illustrates the Gearbox mounting within the Manual Transmission group for the 7 Series E32 735iL produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001434510).
- Which models use the hardware listed in this Gearbox mounting?
- The hardware and components featured in the Gearbox mounting are specific to the 7 Series E32 735iL produced during 1992. These technical specifications ensure that parts like the Torx bolt (23001434510) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting assembly?
- Each item in the Gearbox mounting corresponds to the numbered list below the illustration. For the 7 Series E32 735iL, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001434510 for the Manual Transmission section.
