Gearbox mounting for BMW 5 Series E34 540i (1995)

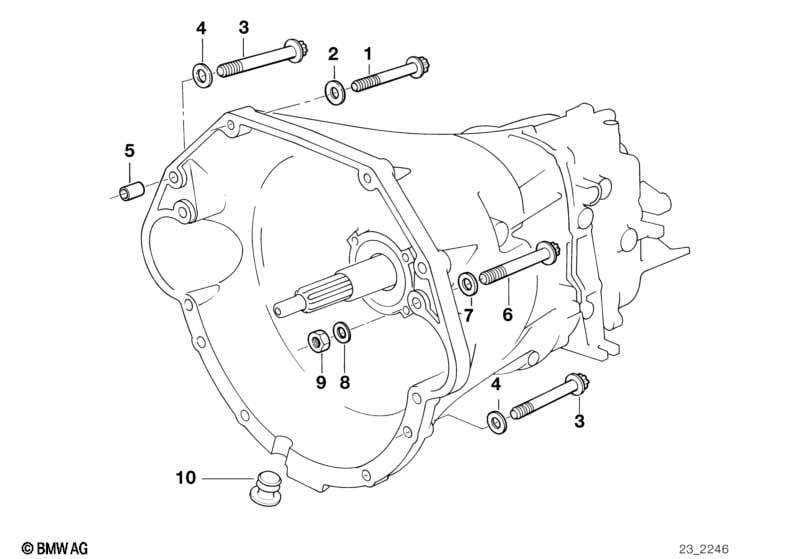

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ASA-Bolt | M8X50-8.8-ZNS3 | 2 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 02 | Washer | 8-200-ZNS3 | 2 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M10X55-8.8 ZNS3 | 8 | 23001222888 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Washer | 10-200HV-ZNNIV | 8 | 07119907114 | Shop at ECS Tuning | |||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M10X60 | 2 | 12411434052 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Washer | 10-200HV-ZNNIV | 2 | 07119907114 | Shop at ECS Tuning | |||||
| 08 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M10 | 2 | 07119907088 | Shop at ECS Tuning | |||||
| 10 | Blind plug | 4 | 23001221853 | $1.50 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Gearbox mounting?
- This technical diagram illustrates the Gearbox mounting within the Manual Transmission group for the 5 Series E34 540i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the ASA-Bolt (Part #23001222887).
- Which models use the hardware listed in this Gearbox mounting?
- The hardware and components featured in the Gearbox mounting are specific to the 5 Series E34 540i produced during 1995. These technical specifications ensure that parts like the ASA-Bolt (23001222887) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gearbox mounting assembly?
- Each item in the Gearbox mounting corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the ASA-Bolt by locating its position on the schematic, which then links to the official BMW part number 23001222887 for the Manual Transmission section.
