GS6X45BZ/DZ Gearshift parts for BMW 1 Series F21 118dX (2015)

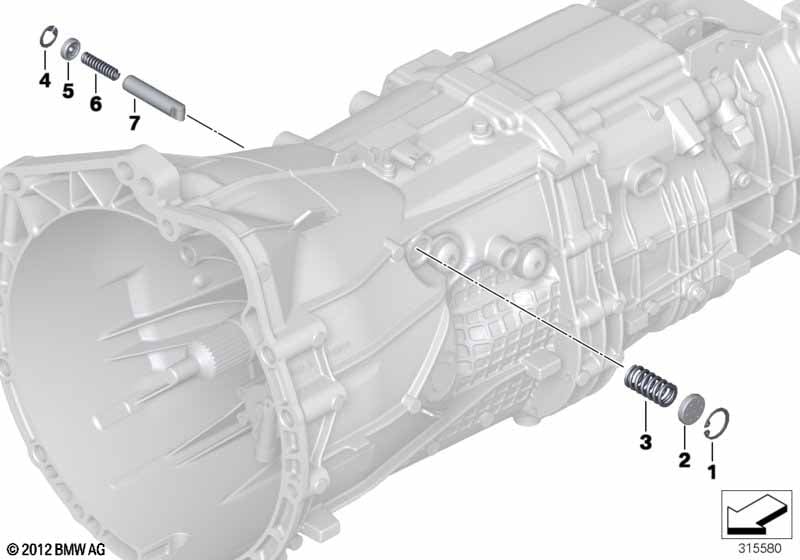

This GS6X45BZ/DZ Gearshift parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 118dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | 20X1 | 1 | 23317531374 | $1.43 | Shop at ECS Tuning | ||||
| 02 | Cover lid | 20X4 | 1 | 23108609214 | Shop at ECS Tuning | |||||
| 03 | Compression spring | 1 | 23108609215 | Shop at ECS Tuning | ||||||
| 04 | Lock Ring | 14X1 | 1 | 23108609217 | Shop at ECS Tuning | |||||
| 05 | Cover lid | 14X4 | 1 | 23108609218 | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 23108609219 | Shop at ECS Tuning | ||||||
| 07 | Locking pin | 1 | 23108609216 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F21 118dX GS6X45BZ/DZ Gearshift parts?
- This technical diagram illustrates the GS6X45BZ/DZ Gearshift parts within the Manual Transmission group for the 1 Series F21 118dX produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Lock Ring (Part #23317531374).
- Which models use the hardware listed in this GS6X45BZ/DZ Gearshift parts?
- The hardware and components featured in the GS6X45BZ/DZ Gearshift parts are specific to the 1 Series F21 118dX produced during 2015. These technical specifications ensure that parts like the Lock Ring (23317531374) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GS6X45BZ/DZ Gearshift parts assembly?
- Each item in the GS6X45BZ/DZ Gearshift parts corresponds to the numbered list below the illustration. For the 1 Series F21 118dX, you can identify the Lock Ring by locating its position on the schematic, which then links to the official BMW part number 23317531374 for the Manual Transmission section.
