Mounting / Suspension for BMW MINI F56 Cooper (2019)

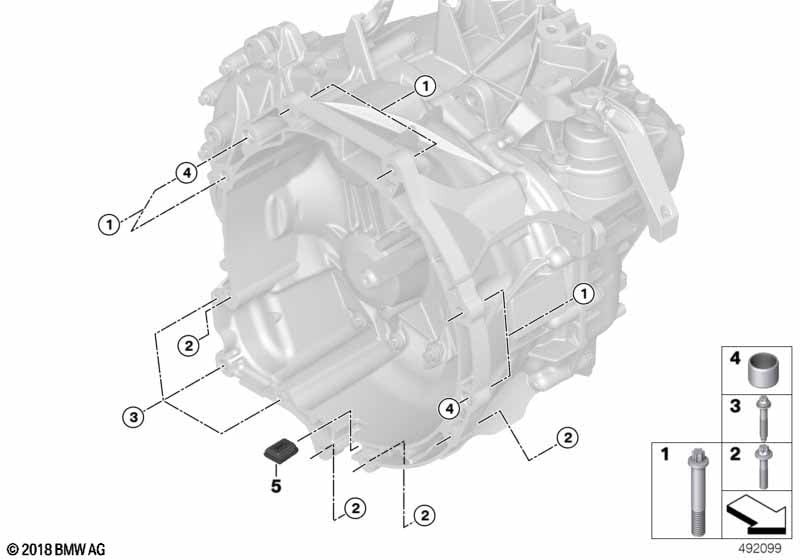

This Mounting / Suspension technical drawing provides a detailed breakdown of the assembly for the MINI F56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport transmission w/ dual-plate clutch and Steptronic with twin-clutch gearbox |
S205A=No S2TCA=No S2TFA=No |
||||||||
| 01 | Torx bolt | M12X75 | 6 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Star-socket screw | BM8X40-8.8-ZNNI | 4 | 07119907836 | Shop at ECS Tuning | |||||
| 03 | Screw | BM8X45 | 3 | 12319908469 | Shop at ECS Tuning | |||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Cap | 1 | 23008612907 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 Cooper Mounting / Suspension?
- This technical diagram illustrates the Mounting / Suspension within the Manual Transmission group for the MINI F56 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Torx bolt (Part #23001222893).
- Which models use the hardware listed in this Mounting / Suspension?
- The hardware and components featured in the Mounting / Suspension are specific to the MINI F56 Cooper produced during 2019. These technical specifications ensure that parts like the Torx bolt (23001222893) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting / Suspension assembly?
- Each item in the Mounting / Suspension corresponds to the numbered list below the illustration. For the MINI F56 Cooper, you can identify the Torx bolt by locating its position on the schematic, which then links to the official BMW part number 23001222893 for the Manual Transmission section.
