Mount / support for GS6-45BZ for BMW 3 Series F80 M3 M3 (2015)

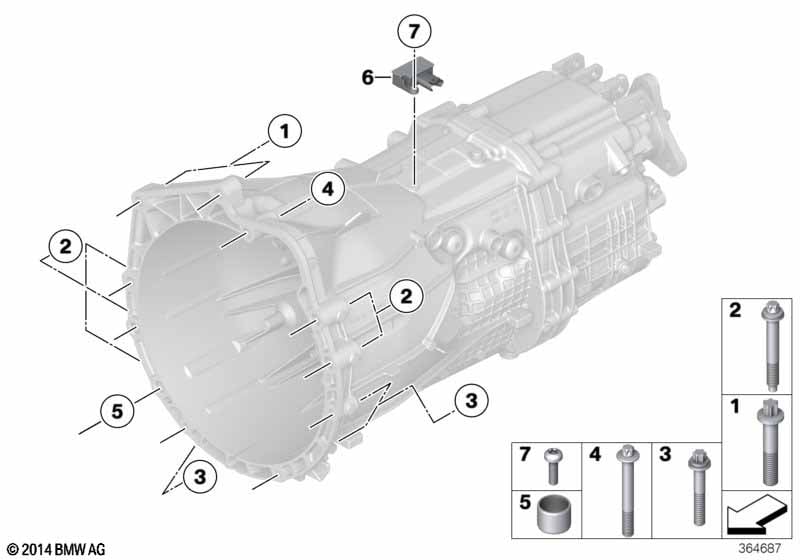

This Mount / support for GS6-45BZ technical drawing provides a detailed breakdown of the assembly for the 3 Series F80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M double-clutch transmiss. w/Drivelogic |
S2MKA=No |
||||||||
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X75 | 5 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 09/2014 | 23001222887 | $1.13 | Shop at ECS Tuning | |||
| 04 | ASA-Bolt | M10X85-8.8-ZNS3 | 1 | 07129903800 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 06 | Gear sensor, 2-channel | 1 | 23142283799 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 23147576178 | Shop at ECS Tuning | |||||
| 07 | Torx screw, micro-encapsulated | M5X12-8.8 ZNS3 | 2 | 06/2015 | 23147576178 | Shop at ECS Tuning | ||||
| 07 | ISA screw | M5X12-8.8-MK | 2 | 23149908749 | Shop at ECS Tuning | |||||
