Single transmission components GS6-58BG for BMW 2 Series F45 Active Tourer LCI 216i (2021)

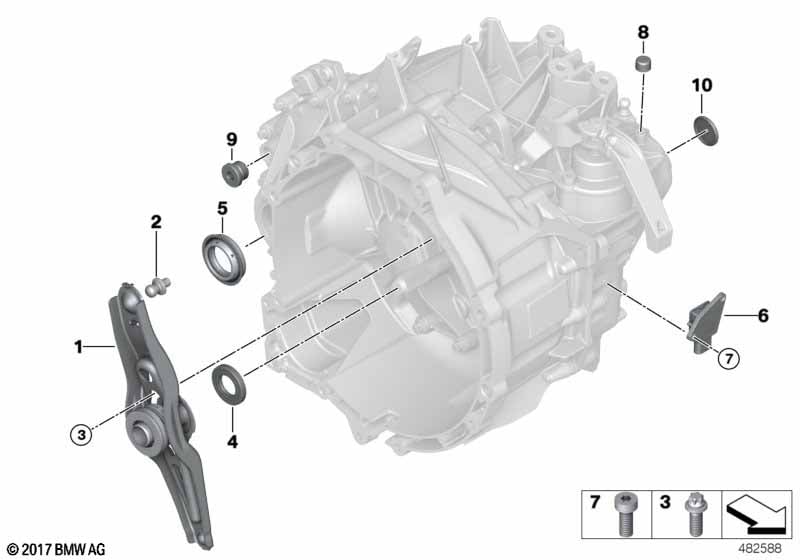

This Single transmission components GS6-58BG technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission and Sport transmission w/ dual-plate clutch |
S205A=No S2TBA=No S2TCA=No |
||||||||
| 01 | Release module | 1 | 21518657323 | Shop at ECS Tuning | ||||||
| includes guide sleeve | ||||||||||
| 02 | Ball pin | H=20,3 | 1 | 21518607921 | Shop at ECS Tuning | |||||
| 03 | Star-socket screw | M6X16-ZNNIV SI | 2 | 07119907463 | Shop at ECS Tuning | |||||
| 04 | Shaft seal | 25X47 | 1 | 23117568469 | $15.29 | Shop at ECS Tuning | ||||
| 05 | Shaft seal, output shaft | 2 | 23118651159 | Shop at ECS Tuning | ||||||
| 06 | Gear sensor | 1 | 23147639208 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ISA screw | M5X12-8.8-ZNNIV | 2 | 07129904849 | $0.60 | Shop at ECS Tuning | ||||
| 07 | ISA screw | M5X12-8.8-MK | 2 | 23149908749 | Shop at ECS Tuning | |||||
| 08 | Ventilation valve | 1 | 33107857501 | Shop at ECS Tuning | ||||||
| 09 | Screw plug | M18X1,5X12 | 2 | 23127602815 | Shop at ECS Tuning | |||||
| For all Getrag 6MTT220 and 6MTT350 as replacement. |
||||||||||
| 10 | Sealing Cover | 35.25X4 | 1 | 23008484418 | Shop at ECS Tuning | |||||
