Gearbox mounting for BMW 3 Series E36 325td (1998)

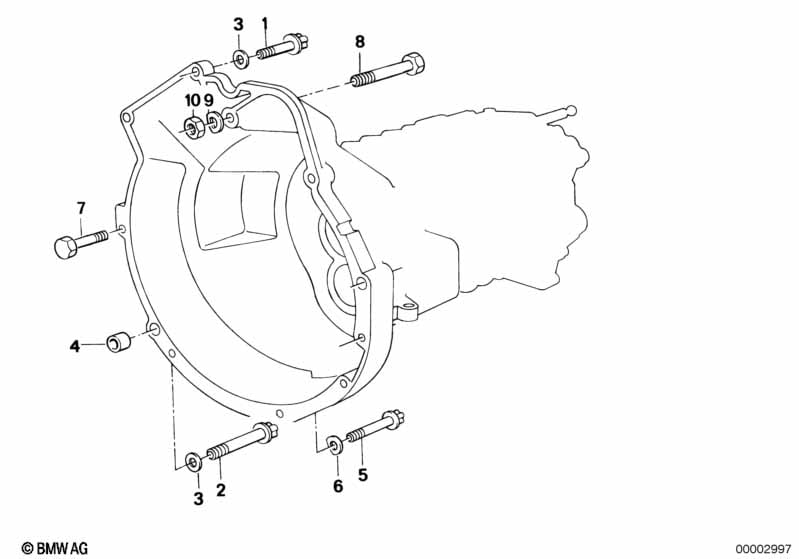

This Gearbox mounting technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Torx bolt | M12X50-8.8-ZNS3 | 2 | 23001222891 | $1.32 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X90 | 2 | 23001222894 | $1.68 | Shop at ECS Tuning | ||||
| 03 | Washer | 12-200 HV-ZNS3 | 4 | 07119906063 | Shop at ECS Tuning | |||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X50-8.8-ZNS3 | 4 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 09 | Washer | D=10MM | 2 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Hex nut | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning |
