S5D...Z countershaft/reverse gear for BMW 3 Series E36 M3 (1995)

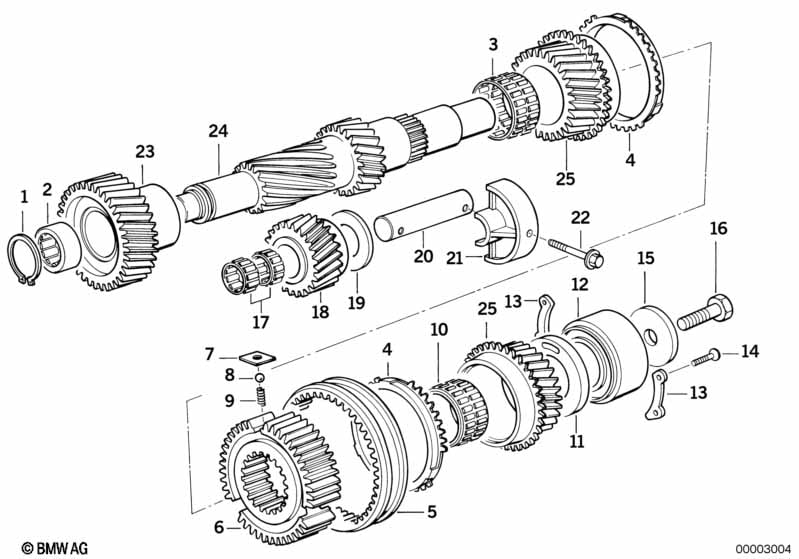

This S5D...Z countershaft/reverse gear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lock Ring | 1 | 23211224892 | $3.48 | Shop at ECS Tuning | |||||
| 02 | Roller bearing | 25X44X20,7 | 1 | 23111224821 | $21.60 | Shop at ECS Tuning | ||||
| 03 | Needle cage | 46X51X34 | 1 | 23211224805 | $8.18 | Shop at ECS Tuning | ||||
| 04 | Synchronizer ring | 2 | 23211224868 | $121.90 | Shop at ECS Tuning | |||||
| 05 | Shift sleeve 3rd and 4th gear | 1 | 23311224965 | $220.34 | Shop at ECS Tuning | |||||
| 06 | Guide sleeve 3rd and 4th gear | 1 | 23211282580 | $96.53 | Shop at ECS Tuning | |||||
| 07 | Insert | 3 | 23211224846 | $4.15 | Shop at ECS Tuning | |||||
| 08 | Ball | 5MM III | 3 | 07119986250 | $0.28 | Shop at ECS Tuning | ||||
| 09 | Compression spring | 3 | 23211224816 | $1.10 | Shop at ECS Tuning | |||||
| 10 | Needle cage | 38X51X34,05 | 1 | 23211224809 | $42.00 | ENDED | Shop at ECS Tuning | |||
| 11 | Stop disk | 1 | 23211224828 | $23.44 | Shop at ECS Tuning | |||||
| 12 | Ball bearing | 30X67X31 | 1 | 23111224808 | $106.03 | Shop at ECS Tuning | ||||
| 13 | Supporting plate | 2 | 23111224844 | $4.15 | Shop at ECS Tuning | |||||
| 14 | Torx bolt | M6X16 | 4 | 23117566216 | $1.39 | Shop at ECS Tuning | ||||
| 15 | Shim | 10,5X42X5 | 1 | 23221224796 | $5.58 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M10X1,25 | 1 | 23211224810 | $2.77 | Shop at ECS Tuning | ||||
| 17 | Needle cage | 22X30X15 | 2 | 23221224811 | $8.62 | Shop at ECS Tuning | ||||
| 18 | Reverse gear | 1 | 23221224861 | $239.94 | ENDED | Shop at ECS Tuning | ||||
| 19 | Shim | 22,05X42X2,5 | 1 | 23221224826 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 20 | Pin | 1 | 23221224847 | $30.41 | Shop at ECS Tuning | |||||
| 21 | Guide Shell | 1 | 23221224862 | $11.38 | ENDED | Shop at ECS Tuning | ||||
| 22 | Torx bolt | M8X55 | 2 | 23227543198 | $2.17 | Shop at ECS Tuning | ||||
| 23 | Repair kit gear wheels 5th gear | 1 | 23211224893 | $518.57 | Shop at ECS Tuning | |||||
| 24 | Repair kit gear wheels 1st A.2nd gear | 1 | 23211224934 | $1053.66 | Shop at ECS Tuning | |||||
| 25 | Repair kit gear wheels 3rd A.4th gear | 1 | 23211224908 | $1291.25 | Shop at ECS Tuning |
