S5D...G countershaft/reverse gear for BMW 3 Series E36 325i (1996)

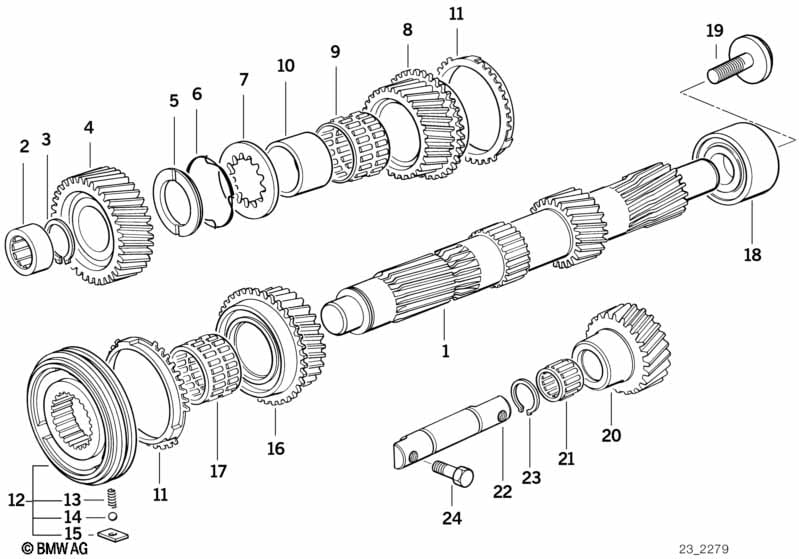

This S5D...G countershaft/reverse gear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Countershaft | 1 | 23117548105 | $534.16 | +core | Shop at ECS Tuning | ||||
| 02 | Roller bushing | 44X25X19,65 | 1 | 23121224077 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 1 | 23221228477 | $1.25 | Shop at ECS Tuning | |||||
| 04 | Gear wheel 5th gear | 1 | 23237543802 | $291.37 | Shop at ECS Tuning | |||||
| 05 | Support | 32X46X3,15 | 1 | 23221228353 | $8.53 | Shop at ECS Tuning | ||||
| 05 | Support | 32X46X3,10 | 1 | 23221228354 | $5.02 | Shop at ECS Tuning | ||||
| 05 | Support | 32X46X3,05 | 1 | 23221228355 | $5.02 | Shop at ECS Tuning | ||||
| 05 | Support | 32X46X3,00 | 1 | 23221228356 | $8.53 | Shop at ECS Tuning | ||||
| 05 | Support | 32X46X2,95 | 1 | 23221228357 | $5.02 | Shop at ECS Tuning | ||||
| 05 | Support | 32X46X2,90 | 1 | 23221228358 | $5.02 | Shop at ECS Tuning | ||||
| 06 | Securing plate | 1 | 23221228359 | $3.52 | Shop at ECS Tuning | |||||
| 07 | Stop disk | 58X33,5X4,5 | 1 | 23231228351 | $7.43 | Shop at ECS Tuning | ||||
| 08 | Shift gear for 4th. gear | 1 | 23221228352 | $325.27 | Shop at ECS Tuning | |||||
| 09 | Needle cage | 46X51X29,3 | 1 | 23231282573 | $23.40 | Shop at ECS Tuning | ||||
| 10 | Inner ring | 46X38,7X29,6 | 1 | 23231228349 | $25.17 | Shop at ECS Tuning | ||||
| 11 | Synchronizer ring | 2 | 23221228489 | Shop at ECS Tuning | ||||||
| 12 | Guide sleeve 3rd and 4th gear | 1 | 23237511335 | $273.13 | Shop at ECS Tuning | |||||
| 13 | Compression spring | 3 | 23231228471 | ENDED | Shop at ECS Tuning | |||||
| 14 | Ball | 3 | 23231224365 | $1.02 | Shop at ECS Tuning | |||||
| 15 | Insert | 3 | 23231224364 | $2.82 | Shop at ECS Tuning | |||||
| 16 | Shift gear for 3rd. gear | 1 | 23221228346 | $325.27 | Shop at ECS Tuning | |||||
| 17 | Needle cage | 38X43X29,8 | 1 | 23211282572 | $17.25 | Shop at ECS Tuning | ||||
| 18 | Angular ball bearing | 25X56X28 | 1 | 23231228360 | $87.21 | Shop at ECS Tuning | ||||
| 19 | Torx bolt | M10X1,5X30 | 1 | 23231222866 | $3.48 | Shop at ECS Tuning | ||||
| 20 | Reverse gear | 1 | 23231228416 | $239.94 | Shop at ECS Tuning | |||||
| 21 | Needle cage | 26X20X17 | 2 | 23211204207 | $26.64 | Shop at ECS Tuning | ||||
| 22 | Pin | 1 | 23231228418 | $27.06 | Shop at ECS Tuning | |||||
| 23 | Lock Ring | 20X1,2 | 2 | 23221224109 | $0.56 | Shop at ECS Tuning | ||||
| 24 | Hex bolt | M8X20 | 2 | 23227545751 | $1.68 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i S5D...G countershaft/reverse gear?
- This technical diagram illustrates the S5D...G countershaft/reverse gear within the Manual Transmission group for the 3 Series E36 325i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Countershaft (Part #23117548105).
- Which models use the hardware listed in this S5D...G countershaft/reverse gear?
- The hardware and components featured in the S5D...G countershaft/reverse gear are specific to the 3 Series E36 325i produced during 1996. These technical specifications ensure that parts like the Countershaft (23117548105) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the S5D...G countershaft/reverse gear assembly?
- Each item in the S5D...G countershaft/reverse gear corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Countershaft by locating its position on the schematic, which then links to the official BMW part number 23117548105 for the Manual Transmission section.
