Gearbox mounting parts for BMW 5 Series G31 Touring 518d (2020)

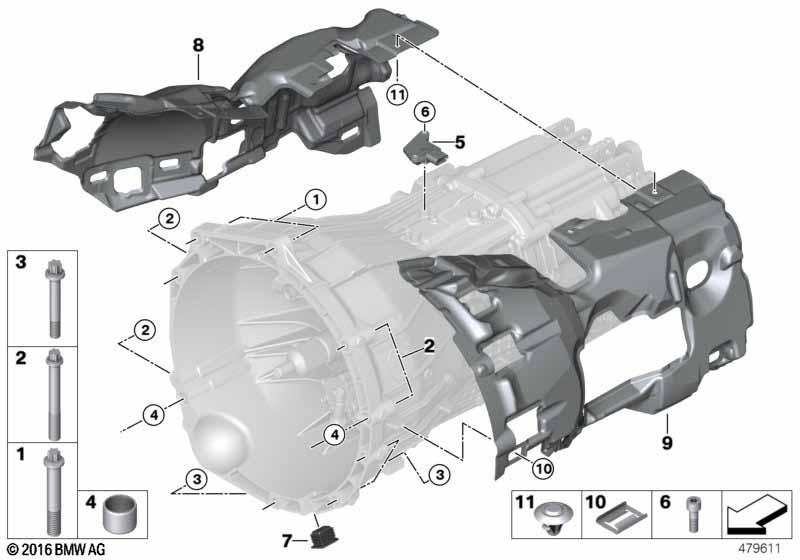

This Gearbox mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 518d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=No |
||||||||
| 01 | Torx bolt | M12X75 | 2 | 23001222893 | $1.62 | Shop at ECS Tuning | ||||
| 02 | Torx bolt | M12X100-8.8ZNS3 | 4 | 23007565047 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 04 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Gear sensor | 1 | 23147649085 | Shop at ECS Tuning | ||||||
| 06 | ISA screw | M5X12-8.8-MK | 2 | 23149908749 | Shop at ECS Tuning | |||||
| 07 | Blind plug | 1 | 23008629977 | Shop at ECS Tuning | ||||||
| 08 | Sound insul.transmission housing right | 1 | 23008684804 | Shop at ECS Tuning | ||||||
| 09 | Sound insulation for transm.housing left | 1 | 23008684803 | Shop at ECS Tuning | ||||||
| 10 | Spring nut | 6 | 24147605027 | Shop at ECS Tuning | ||||||
| 11 | Clip | 3 | 24008642712 | Shop at ECS Tuning | ||||||
