S5D...Z housing + mounting parts for BMW 5 Series E39 528i (2000)

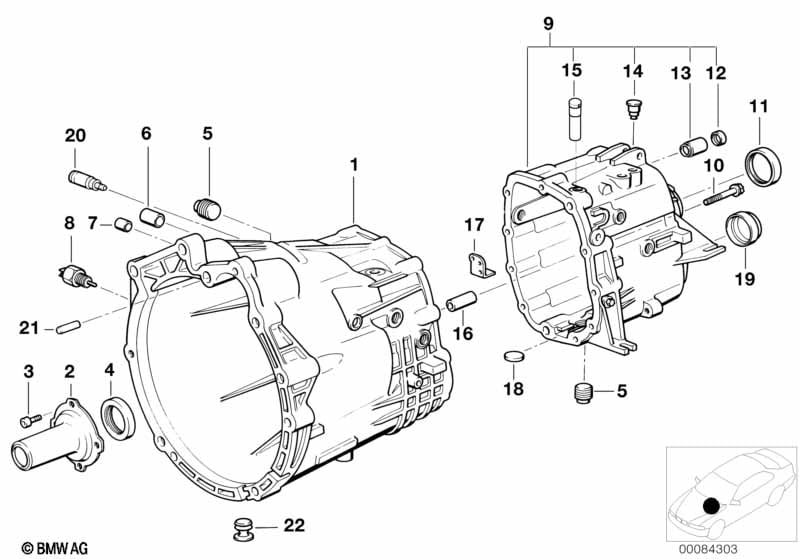

This S5D...Z housing + mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission front housing | 1 | 04/2000 | 23117543169 | $481.72 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Guide tube | 1 | 23111224845 | $27.11 | Shop at ECS Tuning | |||||
| 03 | Torx screw | M6X12 | 4 | 23117531355 | $1.80 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 35X64X8 | 1 | 23211224820 | $20.09 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M24X1,5 | 2 | 27111226798 | $5.61 | Shop at ECS Tuning | ||||
| 06 | Plain bearing | 16X18X25 | 2 | 23117533395 | $4.72 | Shop at ECS Tuning | ||||
| 07 | Plain bearing | 12X14X10 | 2 | 23117533394 | $4.00 | Shop at ECS Tuning | ||||
| 08 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 09 | Transmission rear housing | 1 | 23117525047 | $318.55 | Shop at ECS Tuning | |||||
| 10 | Torx bolt | M8X55 | 11 | 23227543198 | $2.17 | Shop at ECS Tuning | ||||
| 11 | Shaft seal | 40X52X9 | 1 | 23111224799 | $15.29 | Shop at ECS Tuning | ||||
| 12 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 13 | Ball sleeve | 15X21X27 | 1 | 23117516307 | $9.83 | ENDED | Shop at ECS Tuning | |||
| 15 | Vent pipe | 1 | 23117547985 | $5.38 | Shop at ECS Tuning | |||||
| 16 | Guide bush | 8,5X12X32 | 2 | 23111224813 | $3.02 | Shop at ECS Tuning | ||||
| 17 | Bracket | 1 | 23111224938 | $8.26 | Shop at ECS Tuning | |||||
| 18 | Magnet | 1 | 23111224503 | $7.86 | Shop at ECS Tuning | |||||
| 19 | Cover lid | 1 | 23111224824 | $7.88 | Shop at ECS Tuning | |||||
| 21 | Dowel pin | 8M6X24 | 1 | 24411218031 | $2.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
