S5D...G inner gear shifting parts for BMW 5 Series E39 525i (2003)

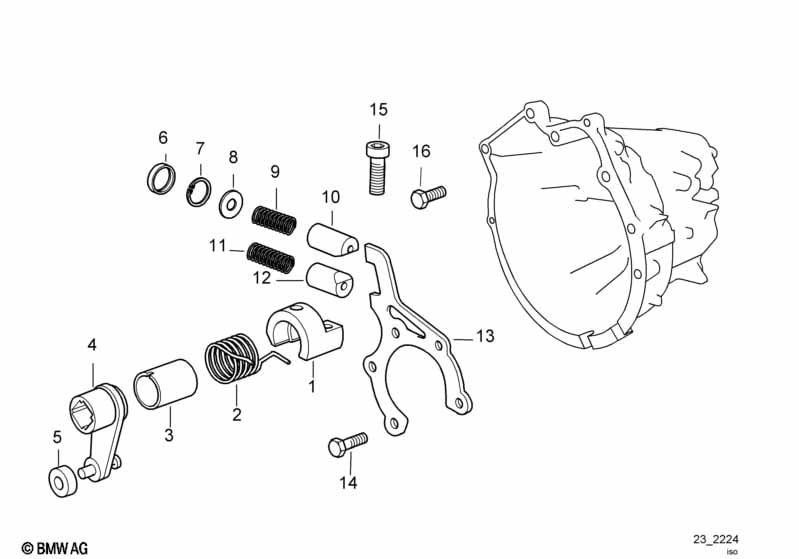

This S5D...G inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 23311426069 | $14.65 | Shop at ECS Tuning | |||||
| 02 | Retainer spring | 1 | 23311228487 | $3.62 | Shop at ECS Tuning | |||||
| 03 | Sleeve | 1 | 23311282540 | $1.95 | Shop at ECS Tuning | |||||
| 04 | Selector cam | 1 | 23311222795 | +core | Shop at ECS Tuning | |||||
| 05 | Roll pin | 1 | 23317539087 | $10.62 | Shop at ECS Tuning | |||||
| 06 | Sealing Cover | 2 | 23127527439 | $4.40 | Shop at ECS Tuning | |||||
| 07 | Lock Ring | 20X1 | 2 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 08 | Washer | 6,5X19,8X1,2 | 2 | 23311228394 | $0.70 | Shop at ECS Tuning | ||||
| 09 | Compression spring | 1 | 23311228393 | $2.80 | Shop at ECS Tuning | |||||
| 10 | Locking pin | 1 | 23311228392 | $11.58 | Shop at ECS Tuning | |||||
| 11 | Compression spring | 1 | 23311224215 | $2.68 | Shop at ECS Tuning | |||||
| 12 | Locking pin | 1 | 23311224130 | $11.96 | Shop at ECS Tuning | |||||
| 13 | Support plate | 1 | 23111228330 | $12.68 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M6X18 | 5 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 15 | Torx screw, micro-encapsulated | M8X25 | 1 | 23317586637 | $1.68 | Shop at ECS Tuning | ||||
| 16 | Hexagon screw with flange | M6X12 | 1 | 23317525540 | $0.58 | Shop at ECS Tuning |
