S6s420g gear wheel set parts for BMW 5 Series E39 540i (2003)

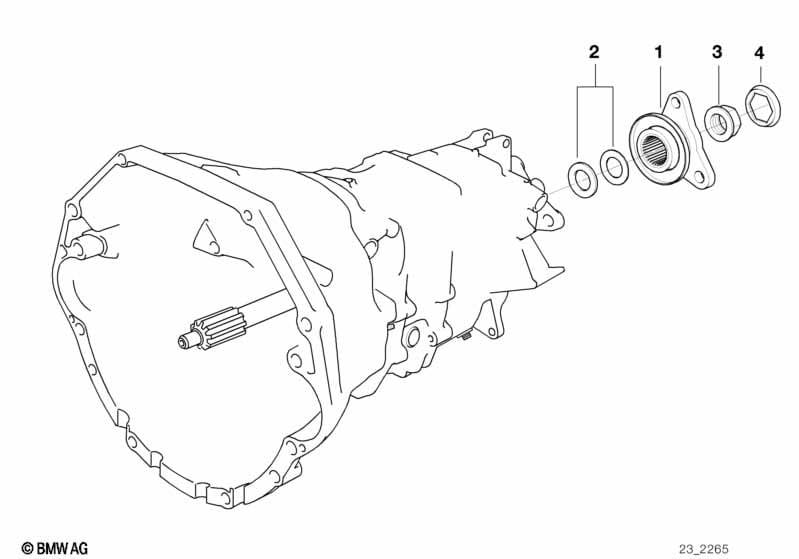

This S6s420g gear wheel set parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Transmission parts for complete-repair only on request. For this repair, there is no repair-instruction or special-tool. The repair should only be made by qualified personal, at best by BMW partner organization. BMW does not assume liability and damages caused through improper repair. |
|||||||||
| 01 | Repair kit, output flange | 1 | 23211222770 | $312.73 | Shop at ECS Tuning | |||||
| 02 | Shim | 24X37X1.4 | 2 | 23211222730 | $6.05 | Shop at ECS Tuning | ||||
| 02 | Shim | 24X37X1.5 | 2 | 23211222731 | $6.05 | Shop at ECS Tuning | ||||
| 02 | Shim | 24X37X1,6 | 2 | 23211222732 | $6.05 | Shop at ECS Tuning | ||||
| 02 | Shim | 24X37X1,9 | 2 | 23211222733 | $6.05 | Shop at ECS Tuning | ||||
| 02 | Shim | 24X37X2,0 | 2 | 23211222734 | $6.05 | Shop at ECS Tuning | ||||
| 02 | Shim | 24X37X2,1 | 2 | 23211222735 | $6.05 | Shop at ECS Tuning | ||||
| 02 | Shim | 24X37X1,8 | 2 | 23211222787 | $6.05 | Shop at ECS Tuning | ||||
| 03 | Collar nut | 1 | 23217501583 | $32.59 | +core | Shop at ECS Tuning | ||||
| 04 | Securing plate | 1 | 23211222212 | $7.00 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
