S5D...G drive shaft/output shaft for BMW 5 Series E39 523i (2000)

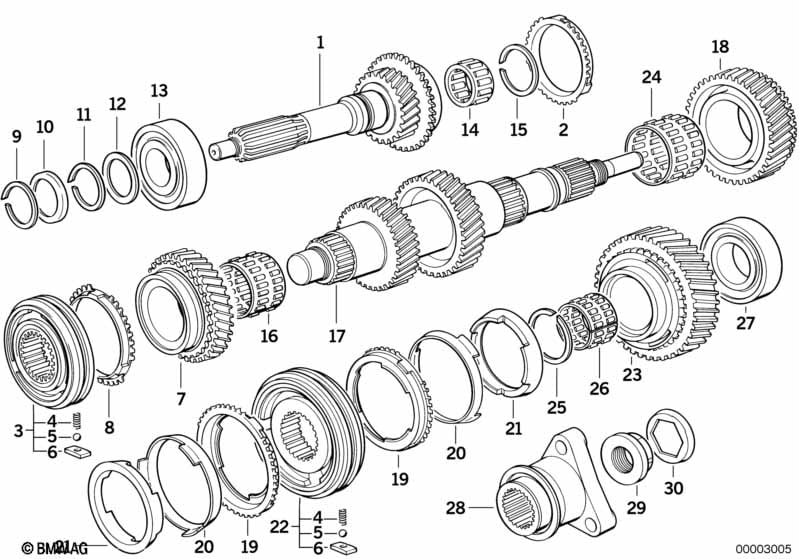

This S5D...G drive shaft/output shaft technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive Shaft | 1 | 23211282429 | $646.30 | Shop at ECS Tuning | |||||
| 02 | Synchronizer ring | 1 | 23227518214 | $90.84 | Shop at ECS Tuning | |||||
| 03 | Guide sleeve 5th and reverse gear | 1 | 23237511330 | $273.13 | Shop at ECS Tuning | |||||
| 05 | Ball | 6 | 23231224365 | $1.02 | Shop at ECS Tuning | |||||
| 06 | Insert | 6 | 23231224364 | $2.82 | Shop at ECS Tuning | |||||
| 07 | Reverse shift gear | 1 | 23221228370 | $381.43 | Shop at ECS Tuning | |||||
| 08 | Synchronizer ring | 1 | 23221228488 | $90.84 | Shop at ECS Tuning | |||||
| 09 | Snap ring | X | 23221228343 | $2.93 | Shop at ECS Tuning | |||||
| 10 | Ring cover | X | 23221228342 | $3.65 | ENDED | Shop at ECS Tuning | ||||
| 11 | Snap ring | 30X2 | 1 | 23221282533 | $2.93 | Shop at ECS Tuning | ||||
| 12 | Support | 30X42X2,3 | 1 | 23221282532 | $4.67 | Shop at ECS Tuning | ||||
| 13 | Grooved ball bearing | 30X72X20 | 1 | 23111228320 | $67.87 | Shop at ECS Tuning | ||||
| 14 | Roller cage | 1 | 23221282571 | $12.52 | Shop at ECS Tuning | |||||
| 15 | Snap ring | 35X2,00 | 1 | 23211209359 | $2.58 | Shop at ECS Tuning | ||||
| 15 | Snap ring | 35X2,10 | 1 | 23211209360 | $2.58 | Shop at ECS Tuning | ||||
| 15 | Snap ring | 35X2,20 | 1 | 23211209361 | $2.58 | Shop at ECS Tuning | ||||
| 15 | Snap ring | 35X2,30 | 1 | 23211209362 | $2.17 | Shop at ECS Tuning | ||||
| 15 | Snap ring | 35X2,25 | 1 | 23231228401 | $2.97 | Shop at ECS Tuning | ||||
| 15 | Snap ring | 35X2,15 | 1 | 23231228402 | $3.05 | Shop at ECS Tuning | ||||
| 15 | Snap ring | 35X2,05 | 1 | 23231228403 | $3.05 | Shop at ECS Tuning | ||||
| 16 | Needle cage | 38X43X29,8 | 1 | 23211282572 | $17.25 | Shop at ECS Tuning | ||||
| 17 | Output shaft | 1 | 23221228362 | $580.60 | Shop at ECS Tuning | |||||
| 18 | Shift gear for 2nd. gear | 1 | 23227548120 | $347.52 | ENDED | Shop at ECS Tuning | ||||
| 19 | Synchronizer ring | 2 | 23231228322 | $90.84 | Shop at ECS Tuning | |||||
| 20 | Conical ring | 2 | 23231222406 | $59.25 | Shop at ECS Tuning | |||||
| 21 | Friction ring | 2 | 23231228324 | $62.01 | Shop at ECS Tuning | |||||
| 22 | Guide sleeve 1st and 2nd gear | 1 | 23237511292 | $304.61 | Shop at ECS Tuning | |||||
| 23 | Shift gear for 1st. gear | 1 | 23221222253 | $393.07 | ENDED | Shop at ECS Tuning | ||||
| 24 | Needle cage | 42X47X34 | 1 | 23221282575 | $21.82 | Shop at ECS Tuning | ||||
| 25 | Snap ring | 38X1,70 | 1 | 23231228448 | $3.05 | Shop at ECS Tuning | ||||
| 25 | Snap ring | 38X1,75 | 1 | 23231228449 | $3.05 | Shop at ECS Tuning | ||||
| 25 | Snap ring | 38X1,80 | 1 | 23231228450 | $3.05 | Shop at ECS Tuning | ||||
| 25 | Snap ring | 38X1,85 | 1 | 23231228451 | $3.05 | Shop at ECS Tuning | ||||
| 25 | Snap ring | 38X1,90 | 1 | 23231228452 | $3.05 | Shop at ECS Tuning | ||||
| 26 | Needle cage | 30X35X31,8 | 1 | 23221282577 | $17.42 | Shop at ECS Tuning | ||||
| 27 | Grooved ball bearing | 65X30X18 | 1 | 23211222260 | $58.05 | Shop at ECS Tuning | ||||
| 28 | Output flange | 1 | 23217504491 | $182.78 | +core | Shop at ECS Tuning | ||||
| 29 | Collar nut | M20X1,5 | 1 | 23217572241 | $10.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i S5D...G drive shaft/output shaft?
- This technical diagram illustrates the S5D...G drive shaft/output shaft within the Manual Transmission group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Drive Shaft (Part #23211282429).
- Which models use the hardware listed in this S5D...G drive shaft/output shaft?
- The hardware and components featured in the S5D...G drive shaft/output shaft are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Drive Shaft (23211282429) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the S5D...G drive shaft/output shaft assembly?
- Each item in the S5D...G drive shaft/output shaft corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Drive Shaft by locating its position on the schematic, which then links to the official BMW part number 23211282429 for the Manual Transmission section.
