S5D...G inner gear shifting parts for BMW 3 Series E46 323i (2000)

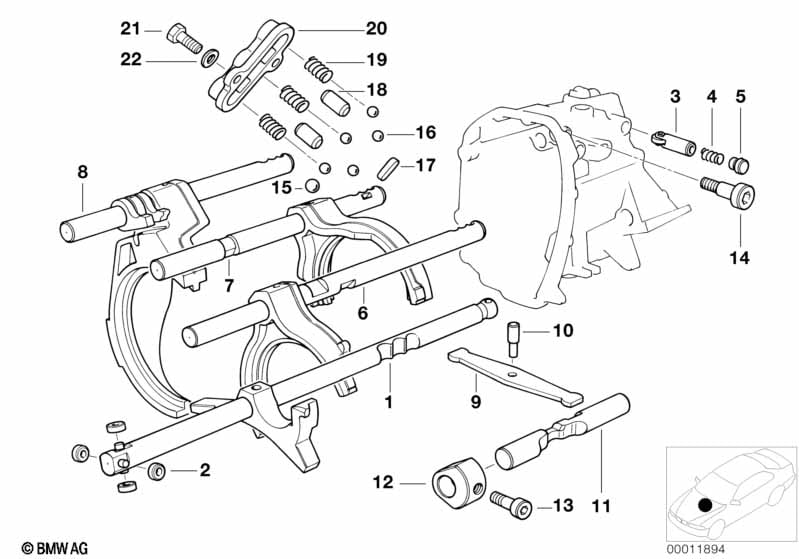

This S5D...G inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23311222321 | $279.22 | Shop at ECS Tuning | |||||
| 02 | Roll pin | 4 | 23317539086 | $10.41 | ENDED | Shop at ECS Tuning | ||||
| 03 | Locking pin | 1 | 23311205113 | $25.45 | Shop at ECS Tuning | |||||
| 04 | Compression spring | D=1,40 | 1 | 23317511337 | $2.80 | Shop at ECS Tuning | ||||
| 05 | Blind plug | 1 | 23317545771 | $6.03 | Shop at ECS Tuning | |||||
| 06 | Shifting rod 5st and reverse gear | 1 | 23311228463 | $115.55 | Shop at ECS Tuning | |||||
| 07 | Shifting rod 1.and 2.gear | 1 | 23311228375 | $115.55 | Shop at ECS Tuning | |||||
| 08 | Shifting rod w/driving dog 3rd/4th gear | 1 | 23317525595 | $178.72 | Shop at ECS Tuning | |||||
| 09 | Deflection lever | 1 | 23311228385 | $10.88 | Shop at ECS Tuning | |||||
| 10 | Pin | 1 | 23311228386 | $5.42 | Shop at ECS Tuning | |||||
| 11 | Shifting rail | 1 | 23311228388 | $25.18 | Shop at ECS Tuning | |||||
| 12 | Suspension | 1 | 23311228390 | $12.75 | Shop at ECS Tuning | |||||
| 13 | Fillister-head screw | M8X15 | 1 | 23227545704 | $0.87 | Shop at ECS Tuning | ||||
| 14 | Deflection pin | 1 | 23317545739 | $4.03 | Shop at ECS Tuning | |||||
| 15 | Ball | 9MM III | 1 | 07119986298 | $0.59 | Shop at ECS Tuning | ||||
| 16 | Ball | 8G20 | 5 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 17 | Locking pin | 4X13 | 1 | 23311224142 | $1.03 | Shop at ECS Tuning | ||||
| 18 | Dowel pin | 8X14,7 | 2 | 23311228396 | $0.95 | Shop at ECS Tuning | ||||
| 19 | Compression spring | 3 | 23311228405 | $2.75 | Shop at ECS Tuning | |||||
| 20 | Cap | 1 | 23311228470 | $15.70 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M6X18 | 2 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 22 | Wave washer | B6 | 2 | 23317545770 | $0.78 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
