S5D...Z inner gear shifting parts for BMW 3 Series E46 328i (2000)

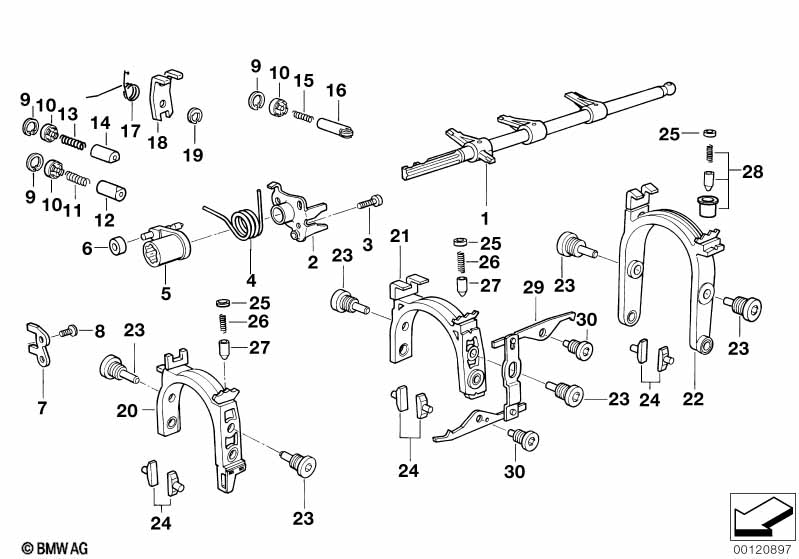

This S5D...Z inner gear shifting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Selector shaft | 1 | 23317501036 | $410.21 | +core | Shop at ECS Tuning | ||||
| 02 | Spring plate | 1 | 23311224937 | $14.67 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M6X20 | 2 | 23311224922 | $1.68 | Shop at ECS Tuning | ||||
| 04 | Return spring | 1 | 23311224832 | $5.42 | Shop at ECS Tuning | |||||
| 05 | Selector arm with ball bearing | 1 | 23311282556 | $77.70 | +core | Shop at ECS Tuning | ||||
| 06 | Roll pin | 1 | 23311224815 | $6.07 | Shop at ECS Tuning | |||||
| 07 | Stop plate | 1 | 01/1999 | 23315A5D855 | Shop at ECS Tuning | |||||
| 08 | Torx bolt | M6X16 | 2 | 23117566216 | $1.39 | Shop at ECS Tuning | ||||
| 09 | Lock Ring | 20X1 | 3 | 23317531374 | $1.43 | Shop at ECS Tuning | ||||
| 10 | Cover lid | 3 | 23311224825 | $5.42 | Shop at ECS Tuning | |||||
| 11 | Compression spring | 1 | 23311224935 | $2.40 | Shop at ECS Tuning | |||||
| 12 | Locking pin | 1 | 01/1999 | 23317502165 | $9.91 | Shop at ECS Tuning | ||||
| 13 | Compression spring | 1 | 23311224817 | $2.92 | Shop at ECS Tuning | |||||
| 14 | Locking pin | 1 | 23311224849 | $8.25 | Shop at ECS Tuning | |||||
| 15 | Compression spring | 1 | 23311224819 | $2.23 | Shop at ECS Tuning | |||||
| 16 | Locking pin | 1 | 23311224823 | $27.61 | Shop at ECS Tuning | |||||
| 17 | Return spring | 1 | 23311224833 | $2.70 | ENDED | Shop at ECS Tuning | ||||
| 18 | Deflection lever | 1 | 23311224863 | $11.46 | Shop at ECS Tuning | |||||
| 19 | Lock Ring | 1 | 23311224923 | $0.57 | Shop at ECS Tuning | |||||
| 20 | Shifting fork 5st and reverse gear | 1 | 23311282585 | $72.70 | +core | Shop at ECS Tuning | ||||
| 21 | Shifting fork 1st and 2nd gear | 1 | 23311282582 | $99.99 | +core | Shop at ECS Tuning | ||||
| 22 | Shifting fork 3rd and 4th gear | 1 | 23311282584 | $106.86 | Shop at ECS Tuning | |||||
| 23 | Bolt | 6 | 23317543214 | $6.88 | Shop at ECS Tuning | |||||
| 24 | Sliding piece | 6 | 23311224848 | $13.99 | ENDED | Shop at ECS Tuning | ||||
| 25 | Cover lid | 3 | 23317637524 | Shop at ECS Tuning | ||||||
| 26 | Compression spring | 2 | 23311224959 | $1.65 | Shop at ECS Tuning | |||||
| 27 | Locking pin | 2 | 23311224791 | $5.48 | Shop at ECS Tuning | |||||
| 28 | Set of detent pins | 1 | 23117525048 | $11.79 | SI 230102(881) | Shop at ECS Tuning | ||||
| 29 | Locking lever | 1 | 23211224843 | $13.01 | Shop at ECS Tuning | |||||
| 30 | Collar bolt | 2 | 23317543225 | $7.61 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
