S5D...G housing + mounting parts for BMW 3 Series E46 325i (2003)

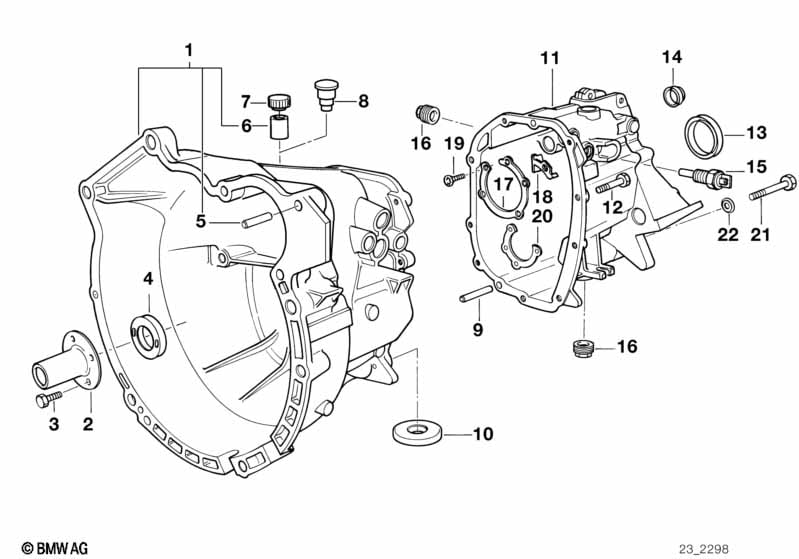

This S5D...G housing + mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission front housing | 1 | 23117546082 | $481.72 | +core | Shop at ECS Tuning | ||||
| 02 | Guide bush | 1 | 09/2003 | 23117510016 | $21.18 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X12 | 4 | 23137545708 | $0.58 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 30X50X7 | 1 | 23128677738 | Shop at ECS Tuning | |||||
| 05 | Dowel pin | 8M6X24 | 1 | 24411218031 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Sleeve | 1 | 23137545703 | $2.58 | Shop at ECS Tuning | |||||
| 07 | Breather cap | 1 | 08/2006 | 23137507652 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Ventilation valve | 1 | 33107857501 | Shop at ECS Tuning | ||||||
| 09 | Dowel pin | 10X32 | 1 | 07119942304 | $0.92 | Shop at ECS Tuning | ||||
| 10 | Magnet | 1 | 23111222678 | $5.23 | Shop at ECS Tuning | |||||
| 11 | Transmission rear housing | 1 | 23111228432 | $255.47 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Ball | 9MM III | 1 | 07119986298 | $0.59 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X35 | 9 | 23117545738 | $1.68 | Shop at ECS Tuning | ||||
| 13 | Shaft seal | 40X55X8 | 1 | 23128742716 | Shop at ECS Tuning | |||||
| 14 | Shaft seal | 15X21X5 | 1 | 23128677736 | Shop at ECS Tuning | |||||
| 15 | Backup light switch | M12X1.5 | 1 | 23147524811 | $11.00 | Shop at ECS Tuning | ||||
| 16 | Screw plug | M24X1,5 | 2 | 23117527440 | $5.48 | Shop at ECS Tuning | ||||
| 17 | Bracket | 1 | 23111228321 | $6.45 | Shop at ECS Tuning | |||||
| 19 | Countersunk head screw | M6X16 | 5 | 23221228336 | $1.02 | Shop at ECS Tuning | ||||
| 20 | Bracket | 1 | 23221228337 | $9.09 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M6X45 | 4 | 23217545741 | $1.28 | Shop at ECS Tuning | ||||
| 22 | Gasket ring | 4 | 23217545740 | $3.59 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i S5D...G housing + mounting parts?
- This technical diagram illustrates the S5D...G housing + mounting parts within the Manual Transmission group for the 3 Series E46 325i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Transmission front housing (Part #23117546082).
- Which models use the hardware listed in this S5D...G housing + mounting parts?
- The hardware and components featured in the S5D...G housing + mounting parts are specific to the 3 Series E46 325i produced during 2003. These technical specifications ensure that parts like the Transmission front housing (23117546082) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the S5D...G housing + mounting parts assembly?
- Each item in the S5D...G housing + mounting parts corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Transmission front housing by locating its position on the schematic, which then links to the official BMW part number 23117546082 for the Manual Transmission section.
