Manual Transmission S5D...Z - 4-wheel for BMW 3 Series E46 330xi (2001)

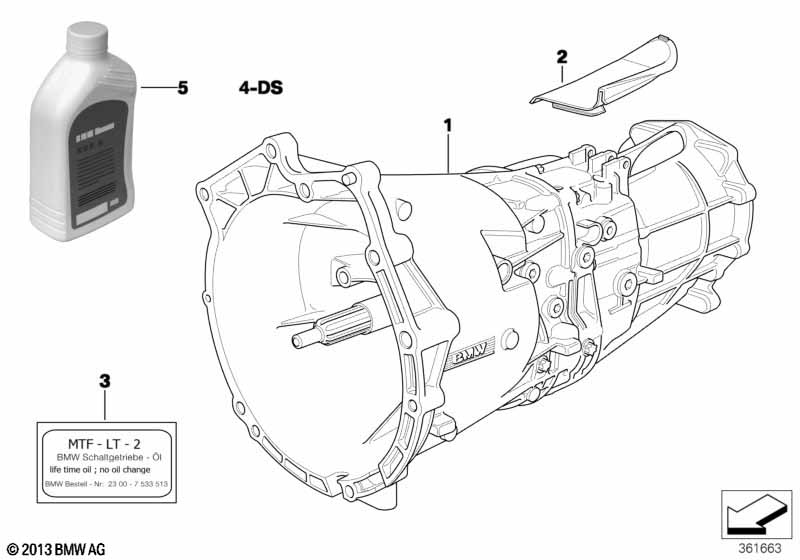

This Manual Transmission S5D...Z - 4-wheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN 5-gear transmission | S5D 320Z - THCG | 1 | 03/2003 | 23007502658 | $3177.17 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Stick-on label, transmission oil | MTF-LT-2 | 1 | 03/2003 | 23007533514 | $1.62 | Shop at ECS Tuning | |||
| 04 | Gasket set | S5D...Z | 1 | 03/2003 | 23117511935 | $40.28 | Shop at ECS Tuning | |||
| 05 | Oil for manual transmission MTF LT-2 | 1L | X | 83222339219 | Shop at ECS Tuning | |||||
| Filling quantity, see Additional Information |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
