GS6S37BZ(SMG) Hydraulic pipes for BMW 3 Series E46 330Ci (2003)

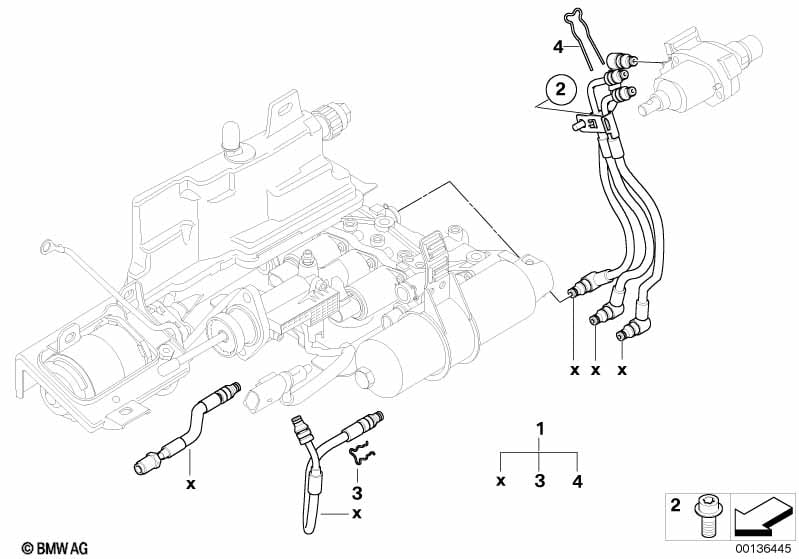

This GS6S37BZ(SMG) Hydraulic pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydraulic pipe kit | 1 | 03/2003 | 23427571293 | $332.86 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx bolt | M6X16 | 1 | 03/2003 | 23017507124 | $1.75 | Shop at ECS Tuning | |||
| 02 | Torx bolt | M6X16 | 1 | 03/2003 | 23017507124 | $1.75 | Shop at ECS Tuning | |||
| 03 | Wire clip, single | 7 | 03/2003 | 23427507095 | $5.90 | Shop at ECS Tuning | ||||
| 04 | Wire clip, dual | 1 | 03/2003 | 23427507096 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci GS6S37BZ(SMG) Hydraulic pipes?
- This technical diagram illustrates the GS6S37BZ(SMG) Hydraulic pipes within the Manual Transmission group for the 3 Series E46 330Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Hydraulic pipe kit (Part #23427571293).
- Which models use the hardware listed in this GS6S37BZ(SMG) Hydraulic pipes?
- The hardware and components featured in the GS6S37BZ(SMG) Hydraulic pipes are specific to the 3 Series E46 330Ci produced during 2003. These technical specifications ensure that parts like the Hydraulic pipe kit (23427571293) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GS6S37BZ(SMG) Hydraulic pipes assembly?
- Each item in the GS6S37BZ(SMG) Hydraulic pipes corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Hydraulic pipe kit by locating its position on the schematic, which then links to the official BMW part number 23427571293 for the Manual Transmission section.
