GS6S37BZ(SMG) Expansion tank / Pump for BMW 3 Series E46 325Ci (2006)

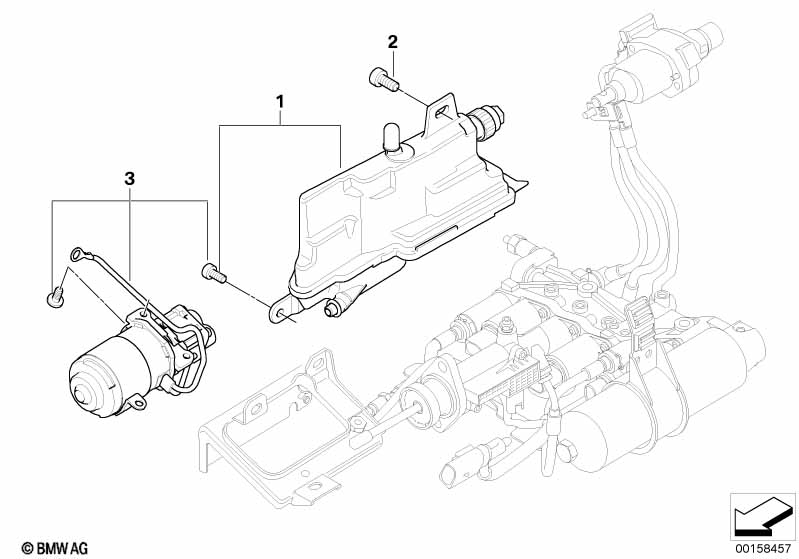

This GS6S37BZ(SMG) Expansion tank / Pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, expansion tank | 1 | 03/2003 | 23427571295 | $77.74 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx bolt | M6X16 | 1 | 03/2003 | 23017507124 | $1.75 | Shop at ECS Tuning | |||
| 02 | Torx bolt | M6X16 | 1 | 03/2003 | 23017507124 | $1.75 | Shop at ECS Tuning | |||
| 03 | Repair kit, hydraulic pump | 1 | 03/2003 | 23427571297 | $333.56 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci GS6S37BZ(SMG) Expansion tank / Pump?
- This technical diagram illustrates the GS6S37BZ(SMG) Expansion tank / Pump within the Manual Transmission group for the 3 Series E46 325Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit, expansion tank (Part #23427571295).
- Which models use the hardware listed in this GS6S37BZ(SMG) Expansion tank / Pump?
- The hardware and components featured in the GS6S37BZ(SMG) Expansion tank / Pump are specific to the 3 Series E46 325Ci produced during 2006. These technical specifications ensure that parts like the Repair kit, expansion tank (23427571295) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the GS6S37BZ(SMG) Expansion tank / Pump assembly?
- Each item in the GS6S37BZ(SMG) Expansion tank / Pump corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Repair kit, expansion tank by locating its position on the schematic, which then links to the official BMW part number 23427571295 for the Manual Transmission section.
