Automatic transmission 4HP22 for BMW 3 Series E30 325e (1987)

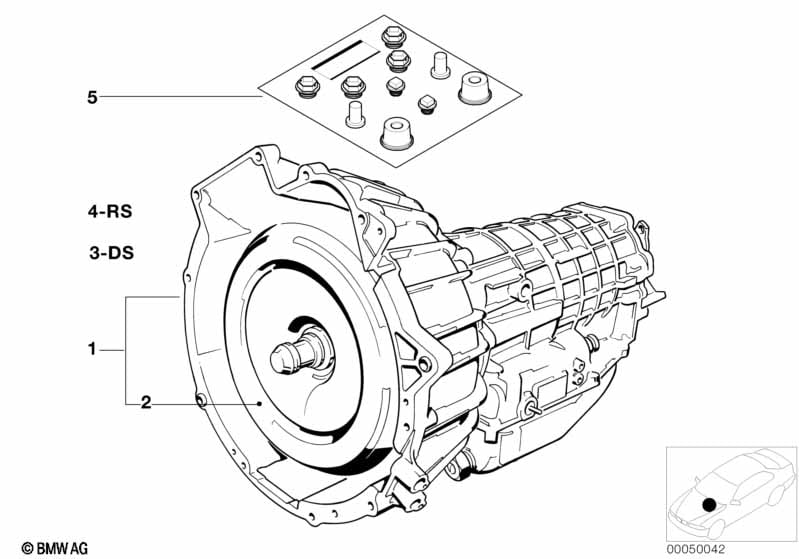

This Automatic transmission 4HP22 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exch. automatic transmission | 4HP22-AJ | 1 | 12/1986 | 24001216585 | ENDED | Shop at ECS Tuning | |||
| 01 | Exch. automatic transmission EH | 4HP22-AR | 1 | 12/1986 | 24001216599 | ENDED | Shop at ECS Tuning | |||
| 02 | Torque converter | C7 | 1 | 12/1986 | 24231217222 | $1508.92 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket set f automatik transmission "AF" | 4HP22 | 1 | 24001215579 | $213.66 | Shop at ECS Tuning | ||||
| 04 | Repair set ax-bearing | 1 | 24001215582 | $182.81 | Shop at ECS Tuning | |||||
| 05 | Set, blind plugs | 1 | 24107536090 | $8.90 | ENDED | Shop at ECS Tuning |
