ZF 3hp22 drive clutch A for BMW 5 Series E28 518i (1986)

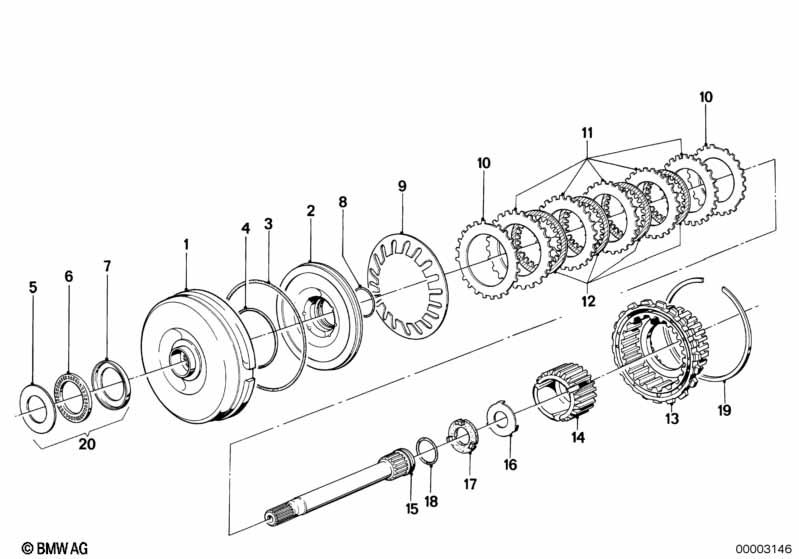

This ZF 3hp22 drive clutch A technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder | 1 | 24211206821 | ENDED | Shop at ECS Tuning | |||||
| 02 | Piston | 1 | 24231206884 | $54.13 | ENDED | Shop at ECS Tuning | ||||
| 03 | O-ring | 1 | 24231217083 | $10.11 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 24231206823 | $5.26 | ENDED | Shop at ECS Tuning | ||||
| 05 | AX bearing | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 06 | AX bearing | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 07 | AX bearing | 1 | 24231209808 | $10.92 | Shop at ECS Tuning | |||||
| 08 | O-ring | 1 | 24231205913 | $2.92 | ENDED | Shop at ECS Tuning | ||||
| 09 | Diaphragm spring | 1 | 24231206824 | $12.63 | Shop at ECS Tuning | |||||
| 10 | Tensioned disk | 2 | 24231205919 | $9.60 | Shop at ECS Tuning | |||||
| 11 | Outer disc | 5 | 24231218784 | $5.96 | Shop at ECS Tuning | |||||
| 12 | Clutch disc | 4 | 24239059361 | $11.95 | Shop at ECS Tuning | |||||
| 13 | Disc carrier | 1 | 24231421551 | $96.46 | ENDED | Shop at ECS Tuning | ||||
| 14 | Disc carrier | 1 | 24231205925 | $85.10 | ENDED | Shop at ECS Tuning | ||||
| 15 | Drive Shaft | 1 | 24211205906 | $227.66 | ENDED | Shop at ECS Tuning | ||||
| 16 | Stop disk | 1 | 24231205924 | $1.27 | ENDED | Shop at ECS Tuning | ||||
| 17 | Stop disk | 1 | 24231205923 | $1.91 | ENDED | Shop at ECS Tuning | ||||
| 18 | O-ring | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 19 | Snap ring | 1 | 24231217134 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 20 | AX bearing | 1 | 24231209808 | $10.92 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518i ZF 3hp22 drive clutch A?
- This technical diagram illustrates the ZF 3hp22 drive clutch A within the Automatic transmission group for the 5 Series E28 518i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder (Part #24211206821).
- Which models use the hardware listed in this ZF 3hp22 drive clutch A?
- The hardware and components featured in the ZF 3hp22 drive clutch A are specific to the 5 Series E28 518i produced during 1986. These technical specifications ensure that parts like the Cylinder (24211206821) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 drive clutch A assembly?
- Each item in the ZF 3hp22 drive clutch A corresponds to the numbered list below the illustration. For the 5 Series E28 518i, you can identify the Cylinder by locating its position on the schematic, which then links to the official BMW part number 24211206821 for the Automatic transmission section.
