Gearbox suspension/mounting for BMW 6 Series E24 630CSi (1977)

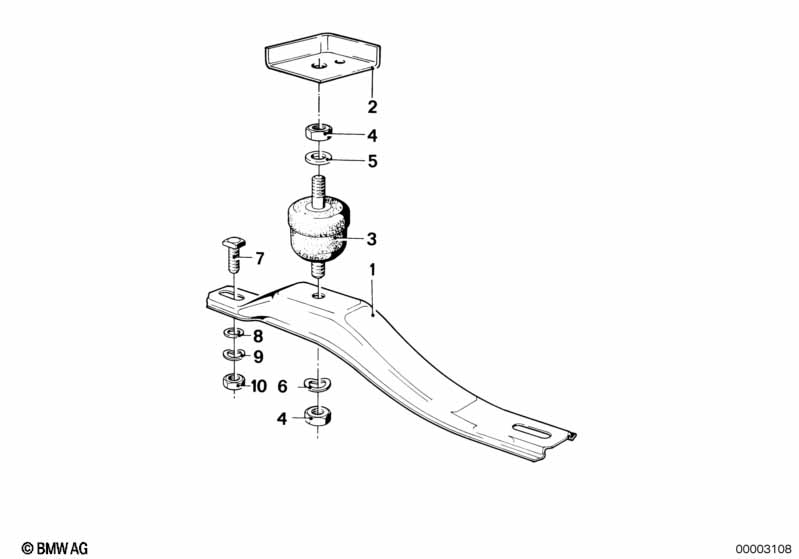

This Gearbox suspension/mounting technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Cross member | 1 | 09/1983 | 23711101810 | $10.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Rubber Mounting | 1 | 09/1982 | 24711127288 | $20.16 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10-8-ZNS | 2 | 09/1983 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 05 | Washer | 10,5X25X3,5MM | 1 | 09/1983 | 64521350824 | $2.67 | Shop at ECS Tuning | |||
| 06 | Wave washer | B10-ZNS3 | 1 | 09/1983 | 07119904463 | Shop at ECS Tuning | ||||
| 07 | Square headed bolt | M8X18 | 1 | 09/1983 | 23711130250 | $4.27 | Shop at ECS Tuning | |||
| 08 | Washer | A8,4X25 | 2 | 09/1983 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 09 | Wave washer | 8,4X15-ZNS3 | 2 | 09/1983 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-8-ZNNIV SI | 2 | 09/1983 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
