Gearbox suspension/mounting for BMW 7 Series E23 730 (1979)

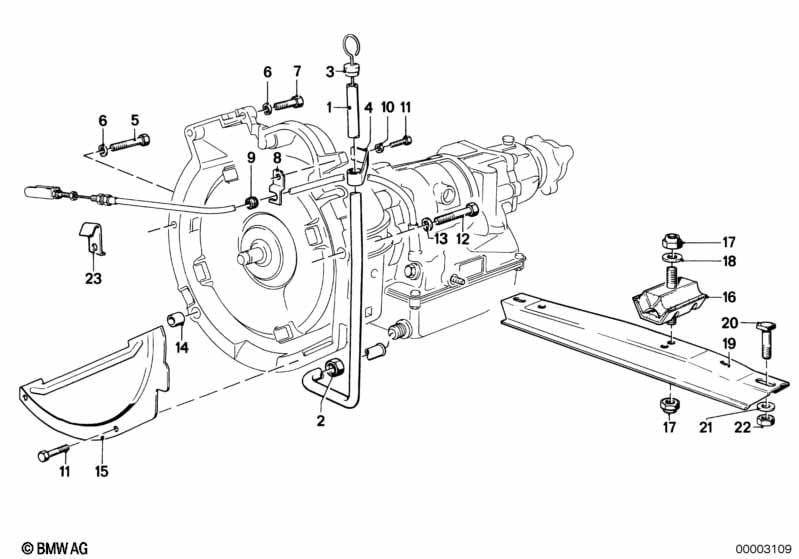

This Gearbox suspension/mounting technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3HP22 | |||||||||
| 01 | Oil fill-in tube | 1 | 24111206692 | $31.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cap nut | 1 | 24111205649 | $5.61 | Shop at ECS Tuning | |||||
| 03 | Dipstick | 1 | 24111216250 | $15.78 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 24111206693 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X35 | 4 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 24111205402 | $1.29 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rubber grommet | 1 | 61131362325 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M10X50 | 2 | 07119913859 | $0.89 | Shop at ECS Tuning | ||||
| 13 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 14 | Dowel | D=14,5/11,0MM | 2 | 24411200459 | $13.83 | ENDED | Shop at ECS Tuning | |||
| 15 | Covering plate | 3HP22 | 1 | 24111205542 | $4.77 | ENDED | Shop at ECS Tuning | |||
| 16 | Rubber Mounting | 1 | 23711246197 | $30.39 | ENDED | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Washer | A10,5X22 | 1 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 19 | Cross member | 1 | 23711246191 | $13.58 | ENDED | Shop at ECS Tuning | ||||
| 20 | Square headed bolt | M8X18 | 1 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 21 | Washer | A8,4X25 | 2 | 07147201571 | $0.20 | Shop at ECS Tuning | ||||
| 22 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
