ZF 3hp22 drive clutch B for BMW 5 Series E12 520 (1981)

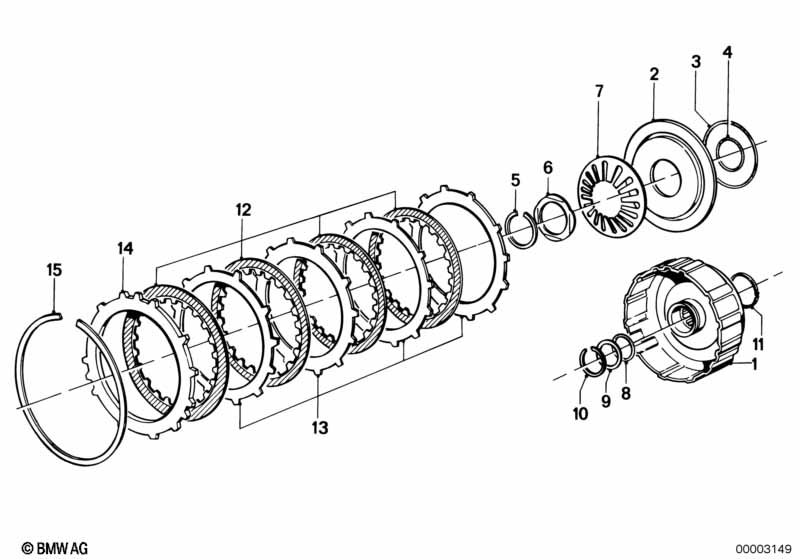

This ZF 3hp22 drive clutch B technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 528A(0)4550995 / 528A(00)4545345 | |||||||||
| 01 | Cylinder | 1 | 24231216987 | $95.98 | ENDED | Shop at ECS Tuning | ||||
| 02 | Piston | 1 | 24231217309 | $41.01 | ENDED | Shop at ECS Tuning | ||||
| 03 | O-ring | 1 | 24231215448 | $9.49 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 24231205913 | $2.92 | ENDED | Shop at ECS Tuning | ||||
| 05 | Snap ring | 1 | 24231205932 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 06 | Circlip | 1 | 24231205931 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diaphragm spring | 1 | 24231205930 | $8.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | O-ring | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 09 | backup ring | 1 | 24231215423 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 10 | Snap ring | 1 | 24231205934 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 11 | Rectangring | 1 | 24231215980 | $12.19 | ENDED | Shop at ECS Tuning | ||||
| 12 | Clutch disc | 3 | 24231215770 | $12.49 | Shop at ECS Tuning | |||||
| 13 | Outer disc | 3 | 24231205935 | $20.51 | Shop at ECS Tuning | |||||
| 14 | Disc | 1 | 24231205937 | $27.82 | ENDED | Shop at ECS Tuning | ||||
| 15 | Snap ring | 1 | 24231217134 | $1.33 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
