ZF 3hp22 brake clutch C/C' for BMW 6 Series E24 633CSi (1979)

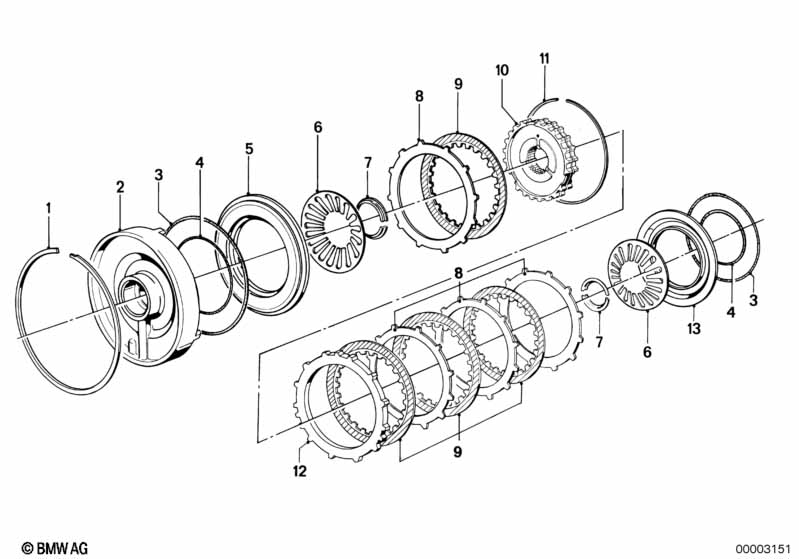

This ZF 3hp22 brake clutch C/C' technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Snap ring | 1 | 24231640101 | $6.81 | ENDED | Shop at ECS Tuning | ||||
| 02 | Center plate | 1 | 24231217142 | $90.12 | ENDED | Shop at ECS Tuning | ||||
| 02 | Center plate | 1 | 24231217142 | $90.12 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cylinder | 1 | 24231209812 | $149.54 | ENDED | Shop at ECS Tuning | ||||
| 03 | O-ring | 2 | 24231218761 | $14.71 | Shop at ECS Tuning | |||||
| 04 | O-ring | 2 | 24311219062 | $3.13 | Shop at ECS Tuning | |||||
| 06 | Diaphragm spring | 2 | 24231205945 | $11.44 | Shop at ECS Tuning | |||||
| 07 | Supporting ring | 2 | 24231205946 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 08 | Outer disc | 4 | 24231205935 | $20.51 | Shop at ECS Tuning | |||||
| 09 | Clutch disc | 4 | 24231215770 | $12.49 | Shop at ECS Tuning | |||||
| 10 | Freewheel 2nd gear | 1 | 24231205948 | $337.10 | Shop at ECS Tuning | |||||
| 12 | Disc | 1 | 24231205937 | $27.82 | ENDED | Shop at ECS Tuning | ||||
| 13 | Piston | 1 | 24231205949 | $64.58 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi ZF 3hp22 brake clutch C/C'?
- This technical diagram illustrates the ZF 3hp22 brake clutch C/C' within the Automatic transmission group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Snap ring (Part #24231640101).
- Which models use the hardware listed in this ZF 3hp22 brake clutch C/C'?
- The hardware and components featured in the ZF 3hp22 brake clutch C/C' are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Snap ring (24231640101) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 brake clutch C/C' assembly?
- Each item in the ZF 3hp22 brake clutch C/C' corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Snap ring by locating its position on the schematic, which then links to the official BMW part number 24231640101 for the Automatic transmission section.
