ZF 3hp22 planet wheel set for BMW 3 Series E21 318i (1982)

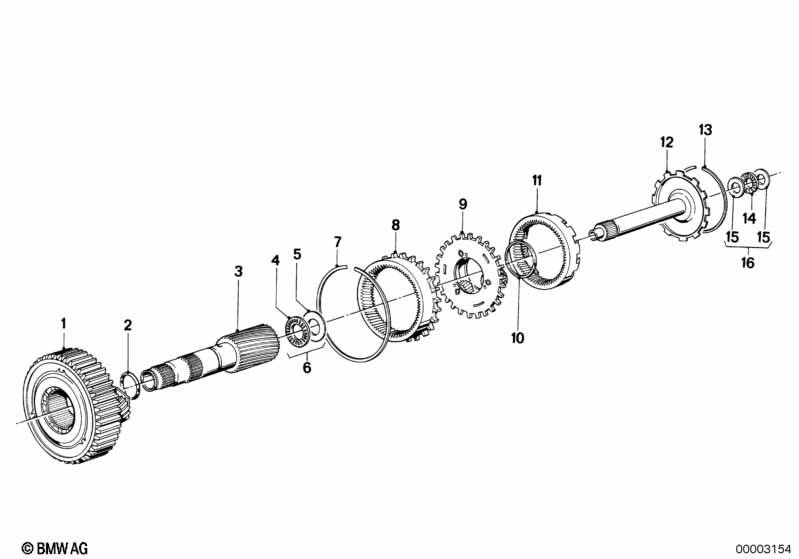

This ZF 3hp22 planet wheel set technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Planet wheel carrier | 1 | 24221421743 | $936.24 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 1 | 24341422152 | $1.59 | Shop at ECS Tuning | |||||
| 03 | Sun shaft | 1 | 24241208452 | $358.24 | ENDED | Shop at ECS Tuning | ||||
| 04 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 05 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 06 | AX bearing | 1 | 24241209806 | $6.22 | Shop at ECS Tuning | |||||
| 07 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 08 | Hollow gear wheel,output | Z=73 | 1 | 24241205958 | $234.36 | ENDED | Shop at ECS Tuning | |||
| 09 | Planet wheel carrier | 1 | 24241208458 | $422.96 | ENDED | Shop at ECS Tuning | ||||
| 10 | Rectangring | 32,4X35,0X2,0 | 1 | 24241216358 | $14.03 | ENDED | Shop at ECS Tuning | |||
| 11 | Hollow gear wheel,input | Z=73 | 1 | 24241205960 | $242.89 | ENDED | Shop at ECS Tuning | |||
| 12 | Intermediate shaft | 1 | 24241205963 | $426.31 | ENDED | Shop at ECS Tuning | ||||
| 13 | Snap ring | D=107MM | 1 | 24241205964 | $3.05 | ENDED | Shop at ECS Tuning | |||
| 14 | AX bearing | 2 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning | ||||
| 15 | AX bearing | 1 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning | ||||
| 16 | AX bearing | 1 | 24241209807 | $5.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
