ZF 3hp22 output for BMW 6 Series E24 633CSi (1984)

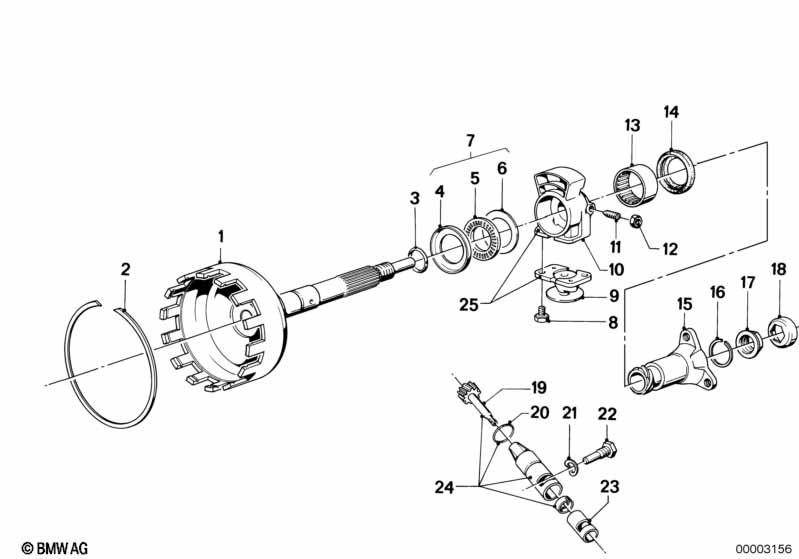

This ZF 3hp22 output technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 528A(0)4550995 / 528A(00)4545345 | |||||||||
| 01 | Output shaft | 1 | 24211209805 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Snap ring | D=122MM | 1 | 24211205989 | $6.33 | ENDED | Shop at ECS Tuning | |||
| 03 | O-ring | 23,52X1,78 | 1 | 24211209829 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 04 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 05 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 06 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 07 | AX bearing | 1 | 24211209809 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X16-Z3-2 | 2 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Regulator housing | 1 | 24321205979 | $100.82 | ENDED | Shop at ECS Tuning | ||||
| 10 | Regulator housing | 1 | 24321205979 | $100.82 | ENDED | Shop at ECS Tuning | ||||
| 11 | Grub screw | M6X20 | 1 | 24321205629 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M6 | 1 | 61211459656 | $1.98 | ENDED | Shop at ECS Tuning | |||
| 13 | Needle bearing | 48X40X20 | 1 | 24211205993 | ENDED | Shop at ECS Tuning | ||||
| 14 | Shaft seal | 40X58X10 | 1 | 24111207428 | ENDED | Shop at ECS Tuning | ||||
| 15 | Output flange | 1 | 24211207051 | $242.86 | ENDED | Shop at ECS Tuning | ||||
| 16 | Snap ring | 1 | 24211205992 | $0.59 | ENDED | Shop at ECS Tuning | ||||
| 17 | Collar nut | M20X1,5 | 1 | 23221201331 | $6.99 | Shop at ECS Tuning | ||||
| 18 | Securing plate | 1 | 23221201330 | $2.33 | Shop at ECS Tuning | |||||
| 19 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 20 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 21 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 22 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning | ||||
| 23 | Cap | 1 | 24111206749 | $2.30 | Shop at ECS Tuning | |||||
| 24 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 25 | Regulator housing | 1 | 24321205979 | $100.82 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi ZF 3hp22 output?
- This technical diagram illustrates the ZF 3hp22 output within the Automatic transmission group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Output shaft (Part #24211209805).
- Which models use the hardware listed in this ZF 3hp22 output?
- The hardware and components featured in the ZF 3hp22 output are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Output shaft (24211209805) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 output assembly?
- Each item in the ZF 3hp22 output corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Output shaft by locating its position on the schematic, which then links to the official BMW part number 24211209805 for the Automatic transmission section.
