ZF 3hp22 output for BMW 6 Series E24 633CSi (1979)

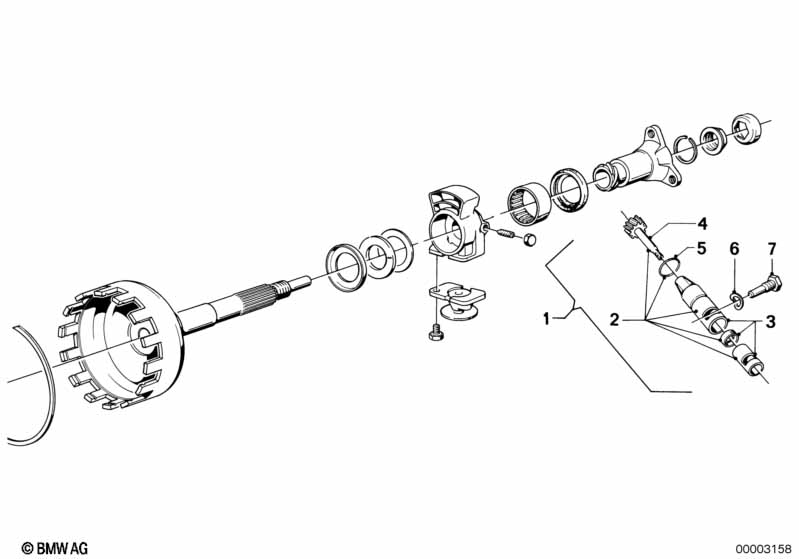

This ZF 3hp22 output technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conversion set speedo drive | 1 | 24111215310 | $677.97 | ENDED | Shop at ECS Tuning | ||||
| 02 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Speedometer drive | 1 | 24211207016 | $40.74 | ENDED | Shop at ECS Tuning | ||||
| 04 | Speedometer drive | 1 | 24211215094 | ENDED | Shop at ECS Tuning | |||||
| 05 | O-ring | 19X1,8 | 1 | 24211218739 | $1.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X20 | 1 | 23211207159 | $2.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi ZF 3hp22 output?
- This technical diagram illustrates the ZF 3hp22 output within the Automatic transmission group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Conversion set speedo drive (Part #24111215310).
- Which models use the hardware listed in this ZF 3hp22 output?
- The hardware and components featured in the ZF 3hp22 output are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Conversion set speedo drive (24111215310) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 3hp22 output assembly?
- Each item in the ZF 3hp22 output corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Conversion set speedo drive by locating its position on the schematic, which then links to the official BMW part number 24111215310 for the Automatic transmission section.
