ZF 3hp22 gear shift/parking lock for BMW 5 Series E12 520 (1976)

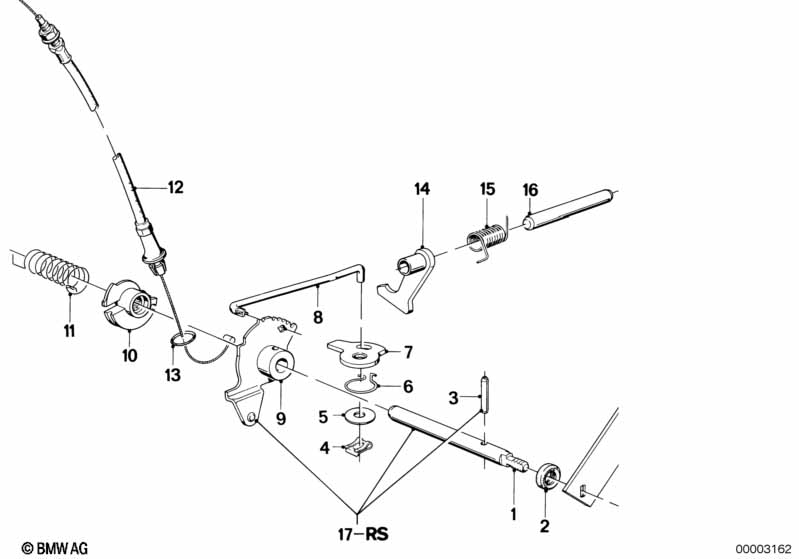

This ZF 3hp22 gear shift/parking lock technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 528A(0)4550995 / 528A(00)4545345 | |||||||||
| 02 | Shaft seal | 10X18X5 | 1 | 07/1975 | 05/1977 | 24147571213 | $5.20 | Shop at ECS Tuning | ||
| 04 | Lock Ring | 1 | 07/1975 | 05/1977 | 24341206012 | $1.44 | ENDED | Shop at ECS Tuning | ||
| 05 | Washer | 1 | 07/1975 | 05/1977 | 24341207289 | $0.66 | ENDED | Shop at ECS Tuning | ||
| 06 | Spring | 1 | 07/1975 | 05/1977 | 24341206010 | $1.44 | ENDED | Shop at ECS Tuning | ||
| 07 | Locker cam | 1 | 07/1975 | 05/1977 | 24341206714 | $3.66 | ENDED | Shop at ECS Tuning | ||
| 08 | Connection rod | 1 | 07/1975 | 05/1977 | 24341206001 | ENDED | Shop at ECS Tuning | |||
| 09 | Repair kit selector rod | 1 | 24341207059 | $30.05 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cam,accelerator | 1 | 07/1975 | 05/1977 | 24341208433 | ENDED | Shop at ECS Tuning | |||
| 11 | Retainer spring | 1 | 07/1975 | 05/1977 | 24341206199 | $4.88 | Shop at ECS Tuning | |||
| 12 | Accelerator bowden cable | 1 | 07/1975 | 05/1977 | 24341206005 | Shop at ECS Tuning | ||||
| 13 | O-ring | 1 | 07/1975 | 05/1977 | 24231215455 | $1.81 | Shop at ECS Tuning | |||
| 14 | Pawl | 1 | 07/1975 | 05/1977 | 24341206712 | $26.37 | ENDED | Shop at ECS Tuning | ||
| 15 | Retainer spring | 1 | 07/1975 | 05/1977 | 24341206713 | $1.04 | ENDED | Shop at ECS Tuning | ||
| 16 | Pin | 1 | 07/1975 | 05/1977 | 24341206006 | $1.66 | ENDED | Shop at ECS Tuning | ||
| 17 | Repair kit selector rod | 1 | 07/1975 | 05/1977 | 24341207059 | $30.05 | ENDED | Shop at ECS Tuning | ||
